Flight Manual for the Waco CG-4 WW2 Assault glider

WACO CG-4

$9.95

Title: WACO CG-4

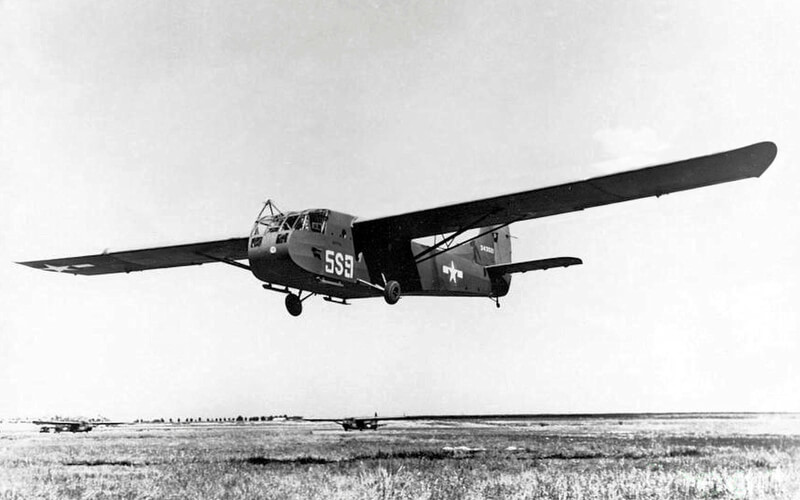

The Waco CG-4 first flew in 1942 and was selected to be the standard USAAF assault glider. The CG-4A was built with steel tubing and wood, and covered with fabric.  It could carry 15 fully equipped troops, or a jeep, or a 75mm howitzer and its crew.   The nose of the glider could be swung up for loading and unloading.   There were also doors in the sides of the fuselage.  An interesting fact is that when carrying a jeep or other large item, a sturdy cable connected the cargo to the hinged nose.  If the cargo shifted on landing, the cable would pull the nose (and the pilots) up and out of the way so the cargo didn’t crush them.

This title contains the flight manual and pilot training manual, the maintenance manual and the Parts Catalog for the Waco CG-4A military transport glider. The files have been scanned from the original flight manuals and retain any colour pages.

Category:

Description

This title contains:

  • USAAF Pilot’s Flight Operating Instructions for the Waco CG-4A glider, T.O. 09-40CA-1 dated 15-6-44, with approx. 14 pages.
  • USAAF Pilot Training Manual for the Waco CG-4A glider, AAF Manual 50-17, with approx. 57 pages.
  • USAAF Erection & Maintenance Instructions for the CG-4A glider, T.O. 09-40CA-2 dated 14-2-43,  with approx. 73 pages. (The British used the CG-4A under the designation “Hadrian I”. This manual also includes the front pages used by the RAF to convert it to the Hadrian manual.)
  • USAAF Parts Catalog for the Waco CG-4A glider, T.O. 09-40CA-4 dated 25-3-45 revised to 10-6-45 with approx. 130 pages.
