McDONNELL-DOUGLAS F-4 PHANTOM II

$9.95

Titles: McDonnell-Douglas F-4 Phantom II No’s 1 to 5

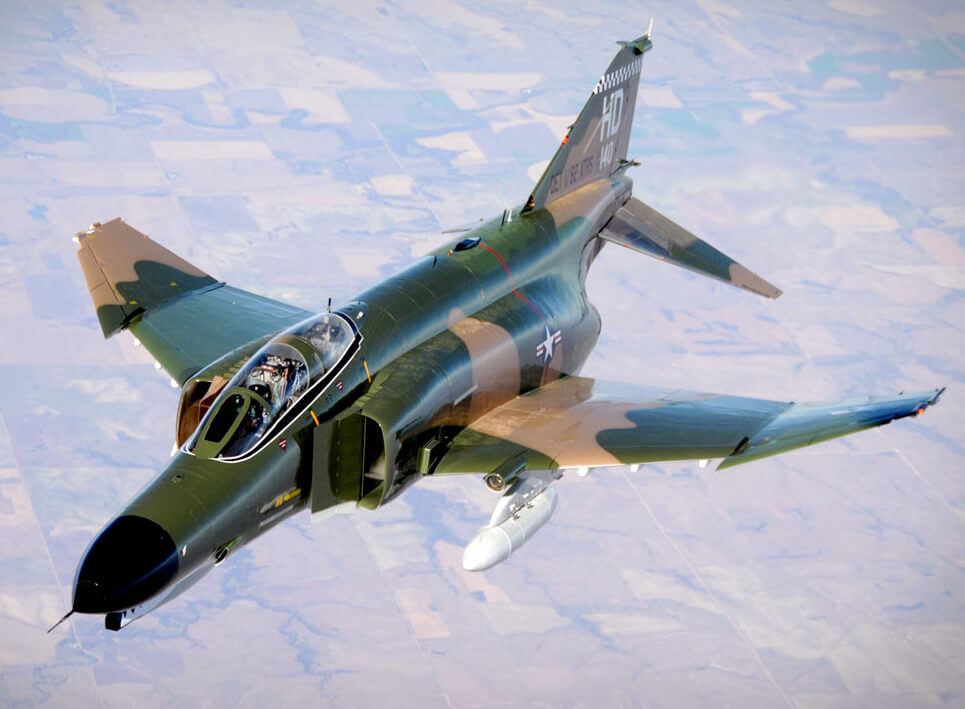

The F-4 first flew in 1958 and had a remarkable production run of over 11 years totalling over 5,000 examples. In addition to being the most numerous Western jet fighter the aircraft has been exported to many countries and developed into many variants. Originally developed for the US Navy the USAF was quick to recognise its potential and ended up the major customer. Although retired from active service with US services in 1996 it remains a front line fighter with several countries as at 2016.

The F-4 is a large aircraft capable of mach 2.2 and carrying 18,000 lbs of weapons on external hardpoints. Like most contemporary fighters it was not equipped with an internal cannon, but following experience in Vietnam one was installed in the new E model.

We offer five titles for various marks of the F-4 Phantom II.  Each title is US$9.95. Each title contains flight manuals applicable to a particular air arm. Each file has been scanned from the original flight manuals and retains any colour pages, unless otherwise stated.

SKU: N/A Category:

Description

Title 1 contains:

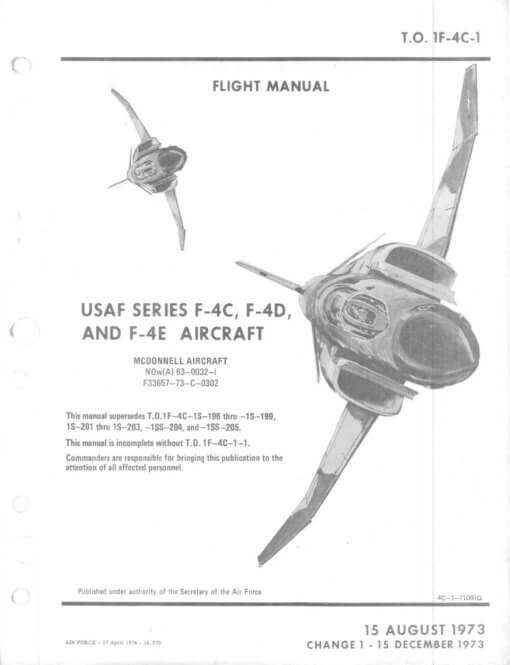

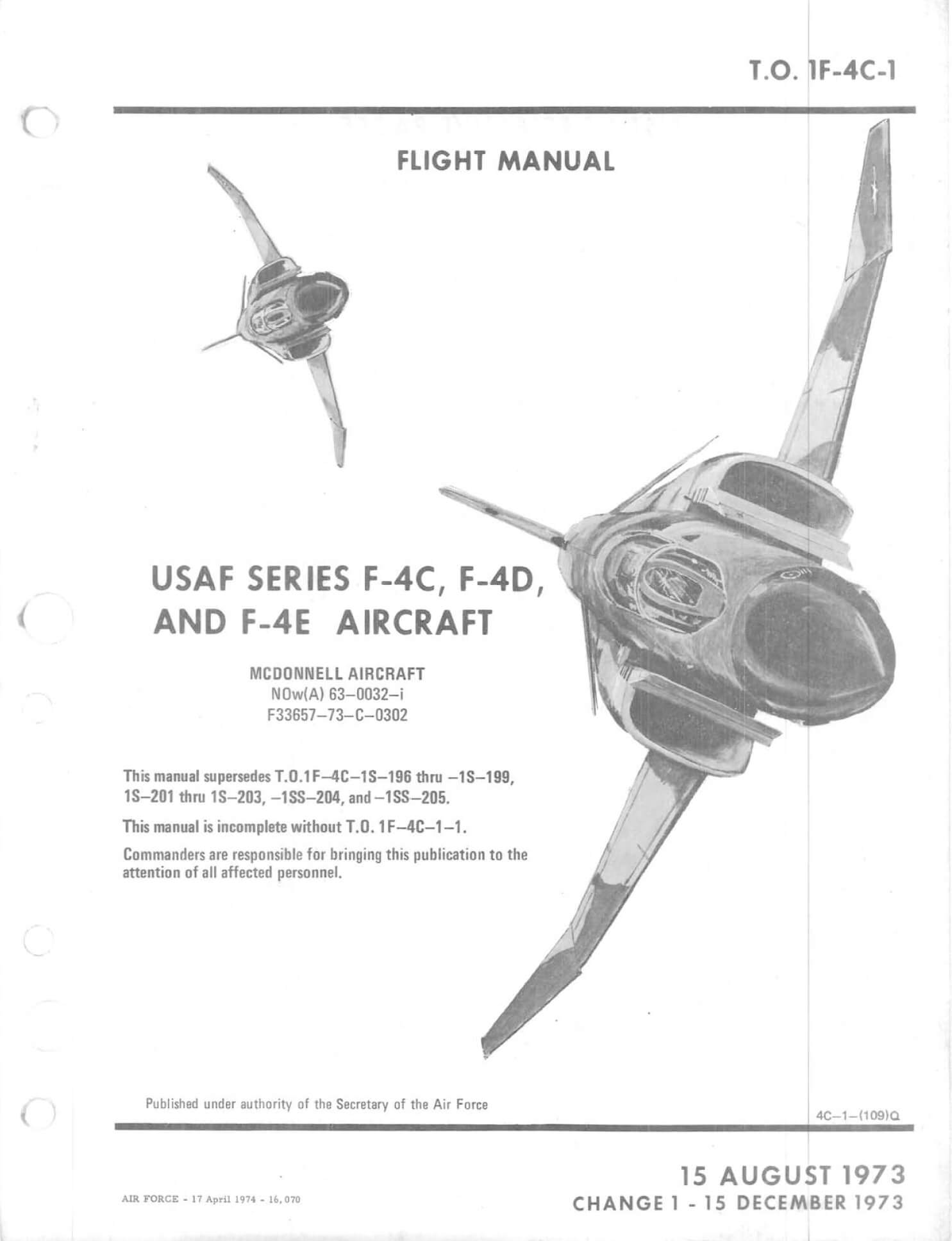

  • USAF Flight Manual for the F-4C F-4D and F-4E, TO F-4C-1 dated 15-8-73 revised to 15-12-73, with approx 343 pages.

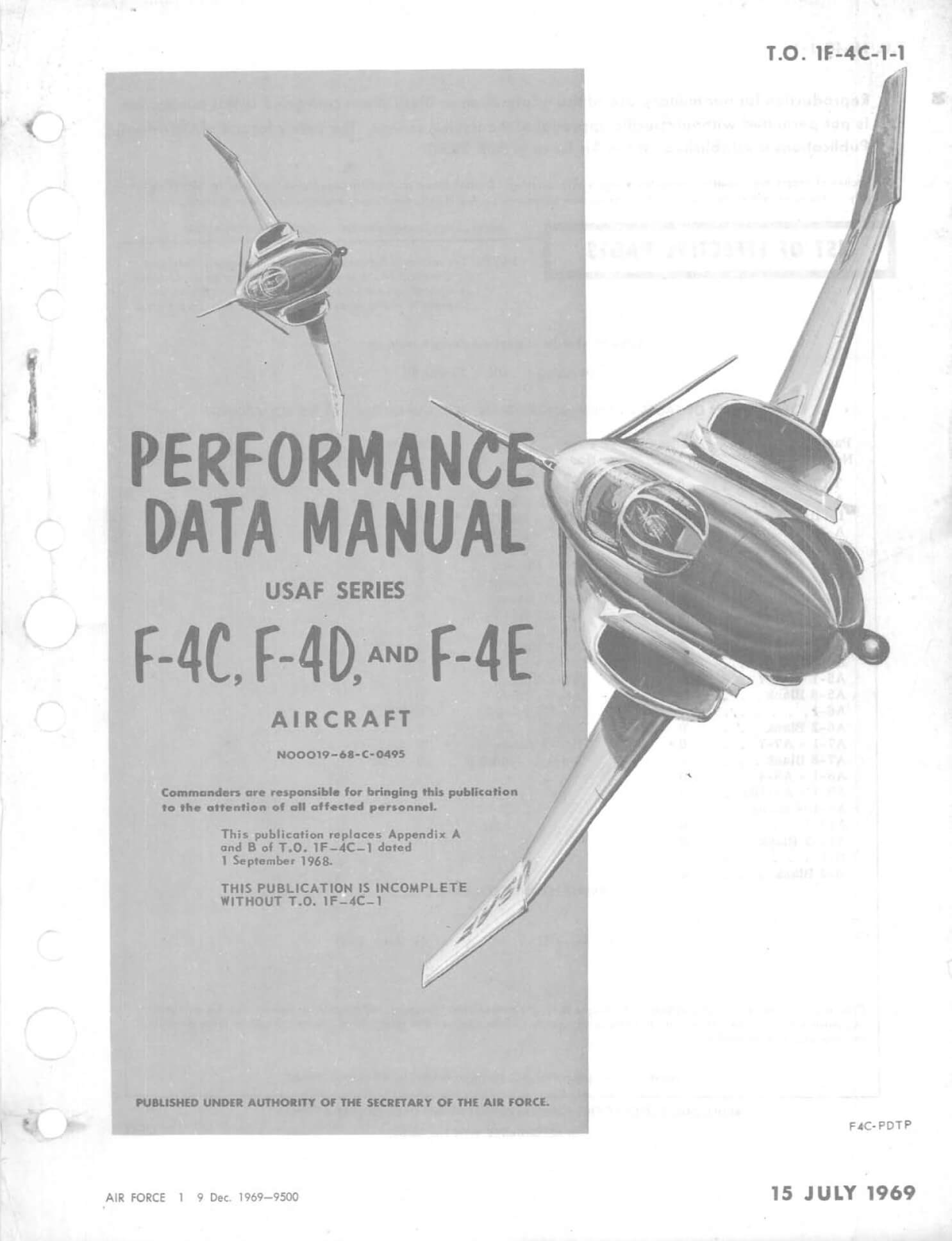

  • USAF Performance Data Manual for the F-4C F-4D and F-4E, TO F-4C-1-1 dated 15-7-69, with approx 417 pages.

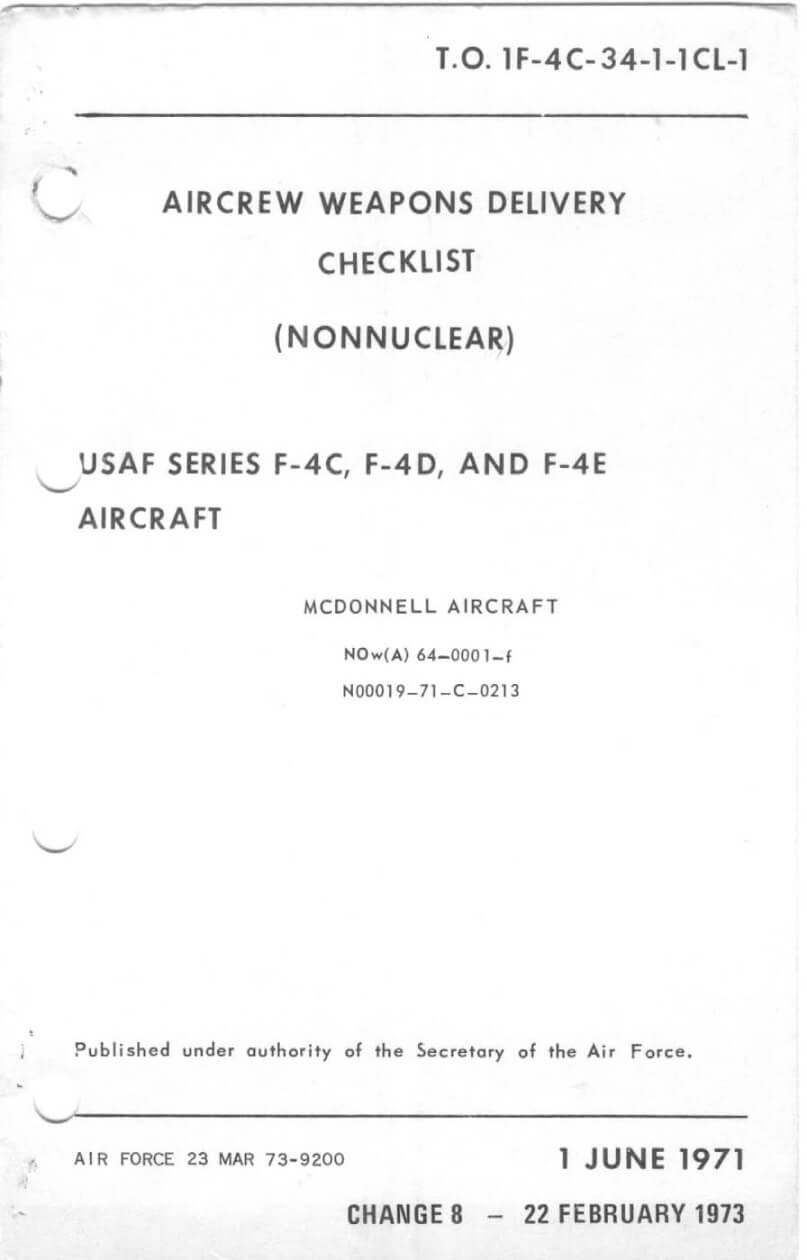

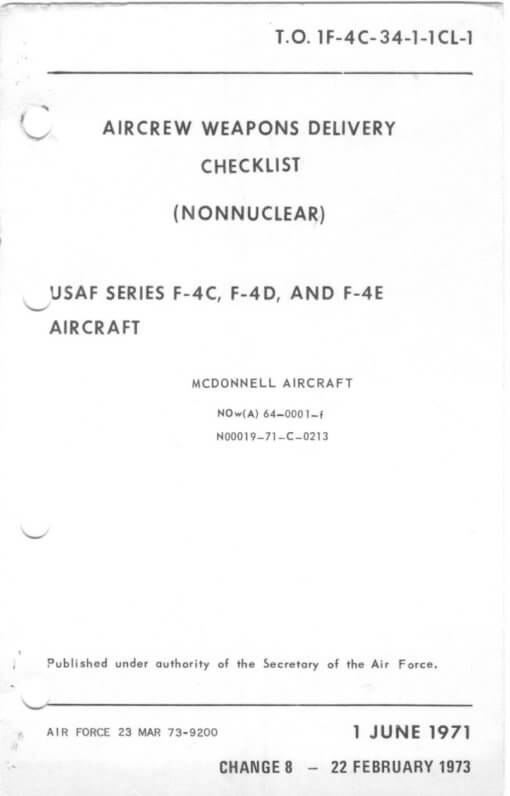

  • USAF Weapon Delivery Checklist for the F-4C F-4D and F-4E, TO F-4C-34-1-1CL-1 dated 1-6-71 revised to 22-2-73, with approx 484 pages.

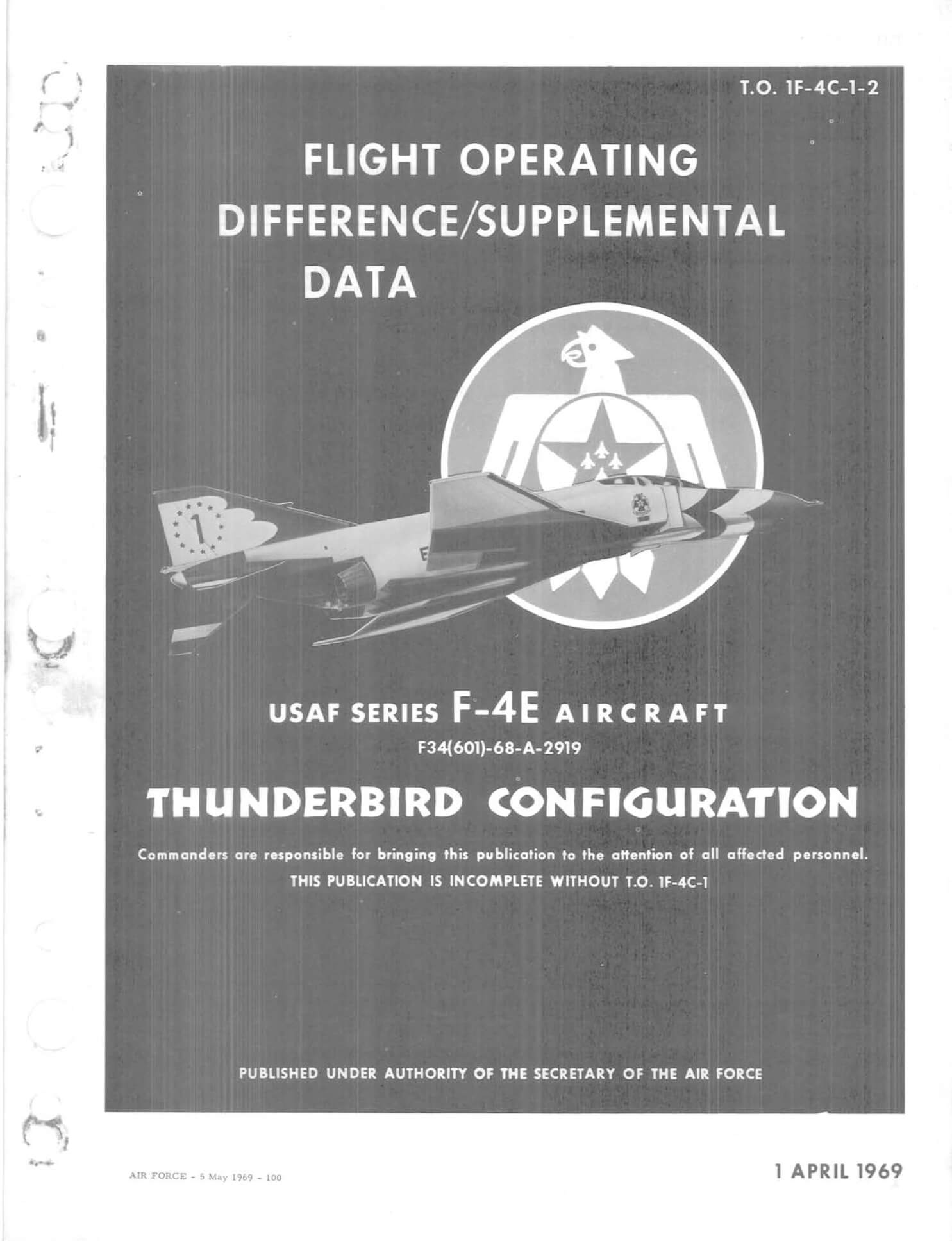

  • USAF Flight Operating Difference / Supplemental Data for the F-4E Thunderbird Configuration, TO F-4C-1-2 dated 1-4-69, with approx 40 pages.

Title 2 contains:

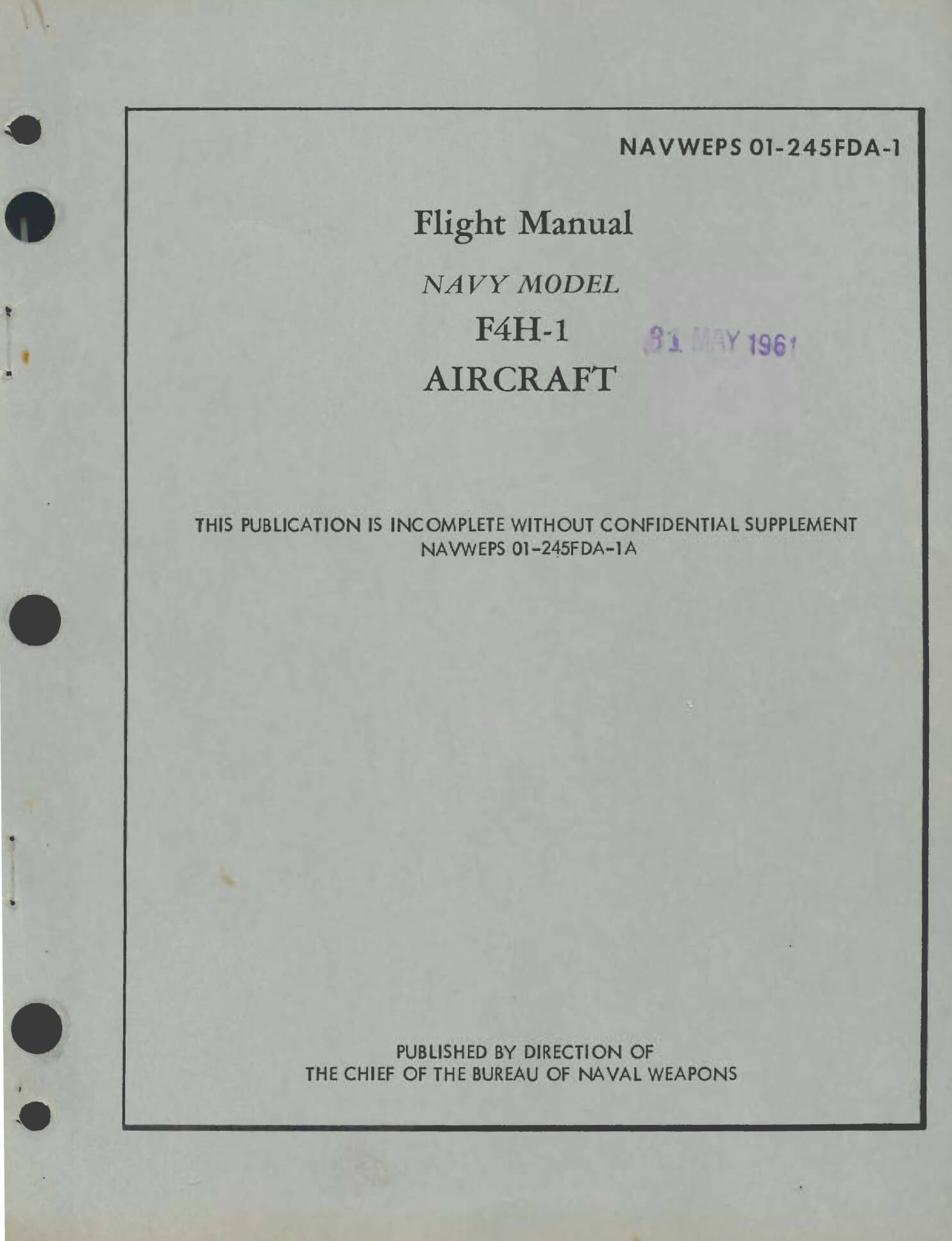

  • US Navy Flight Manual for the F4H-1, NAVWEPS 01-245FDA-1 dated 1-5-61 revised to 1-7-61, with approx 191 pages – Also US Navy Supplement to Flight Manual for the F4H-1F, NAVWEPS 01-245FDA-1A dated 15-3-62 revised to 15-9-62, with approx 158 pages. (Originally classified Confidential.)

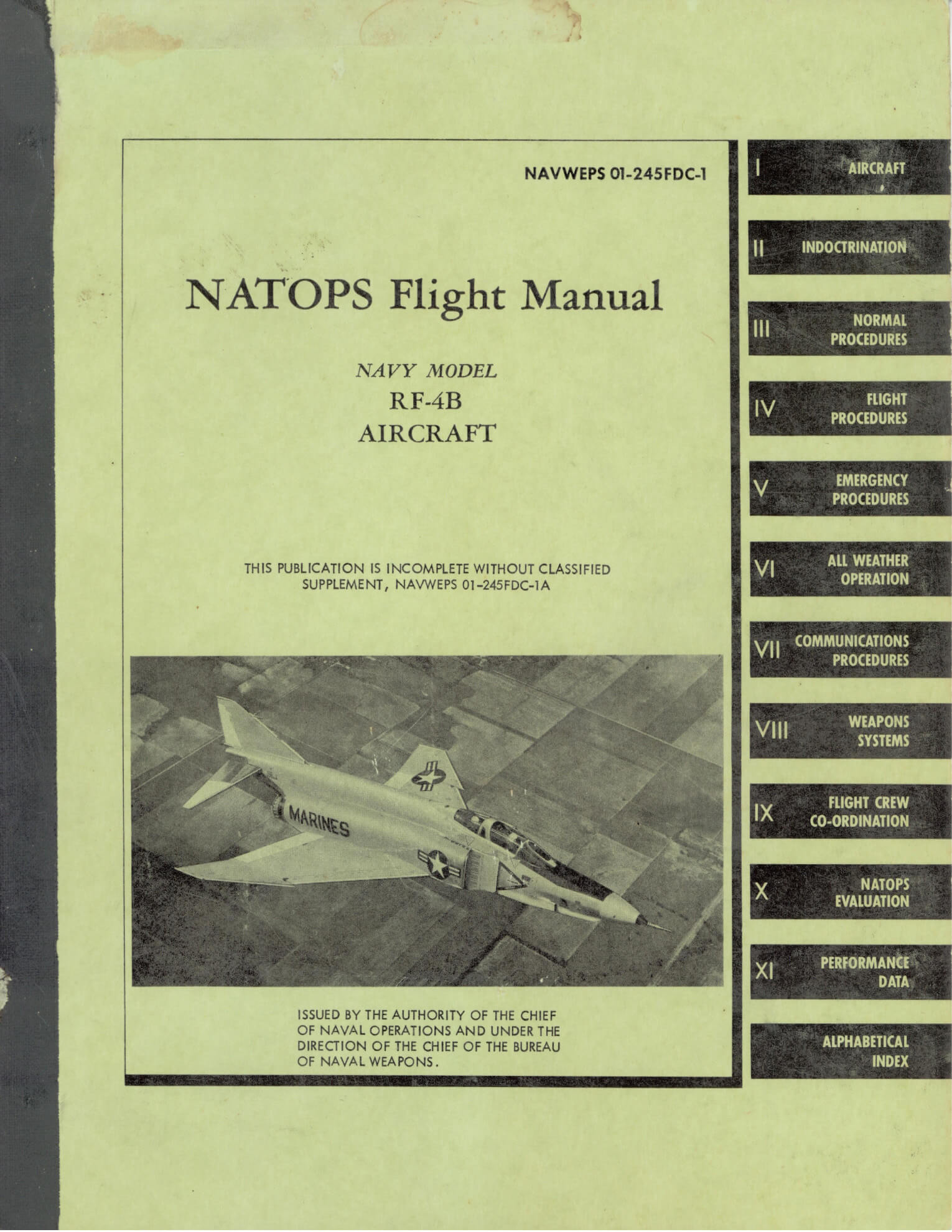

  • US Navy NATOPS Flight Manual for the RF-4B, NAVAIR 01-245FDC-1 dated 15-12-65 revised to 15-4-66, with approx 400 pages.

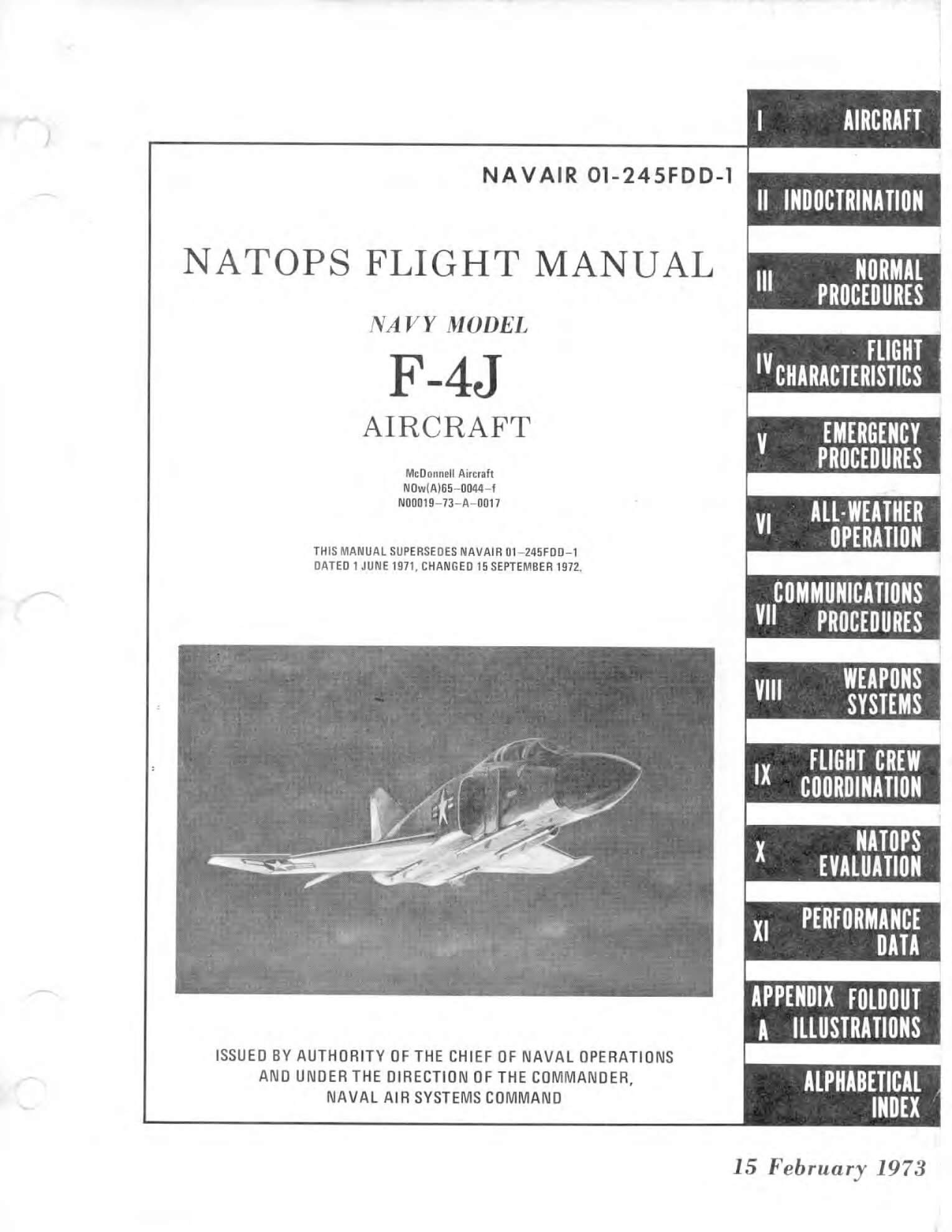

  • US Navy Flight Manual for the F-4J, NAVAIR 01-245FDD-1 dated 15-2-73, with approx 588 pages.
  • US Navy Flight Operating Difference/Supplemental Data for the F4J Flight Demonstration Team Aircraft Configuration, NAVWEPS 01-245FDA-1 dated 1-5-61 revised to 1-7-61, with approx 191 pages.

Title 3 contains:

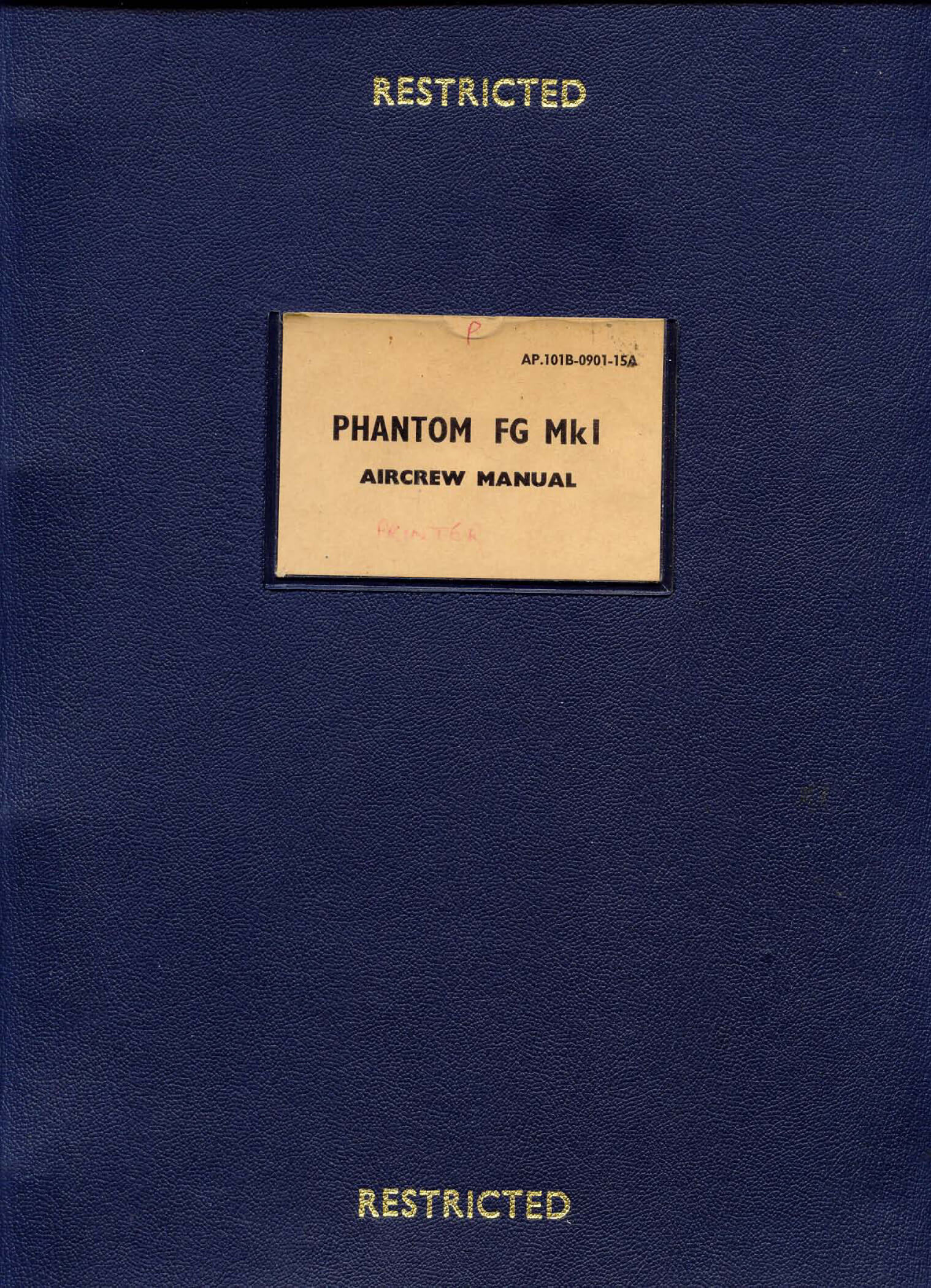

  • RAF Aircrew Manual for the Phantom FG.1, AP 101B-0901-15A dated Oct 69, with approx 280 pages.

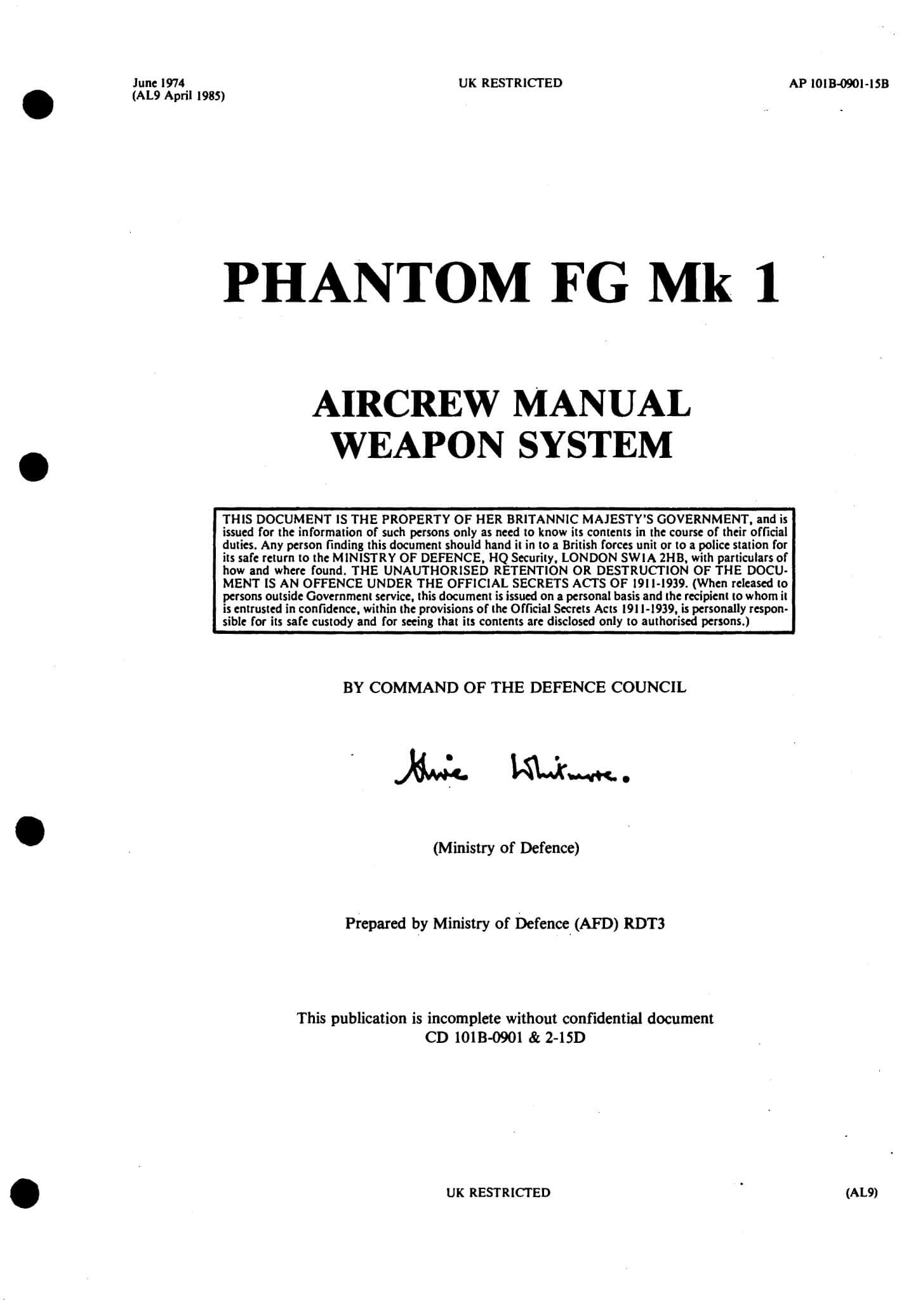

  • RAF Weapons System Manual for the Phantom FG.1, AP 101B-0901-15B dated Jun 74 revised to Apr 85, with approx 91 pages.

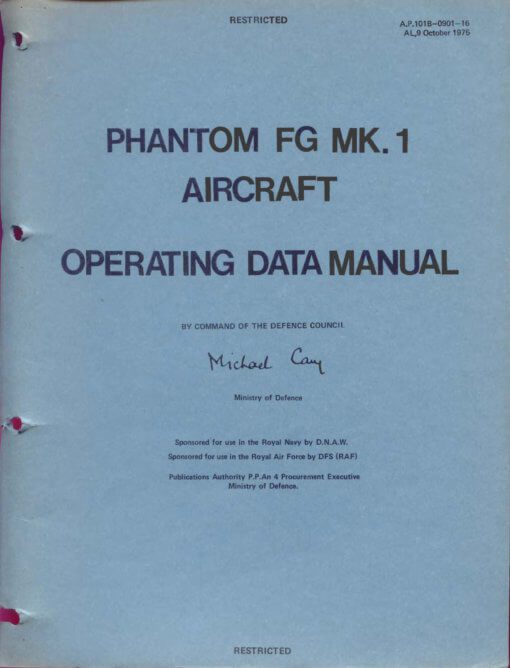

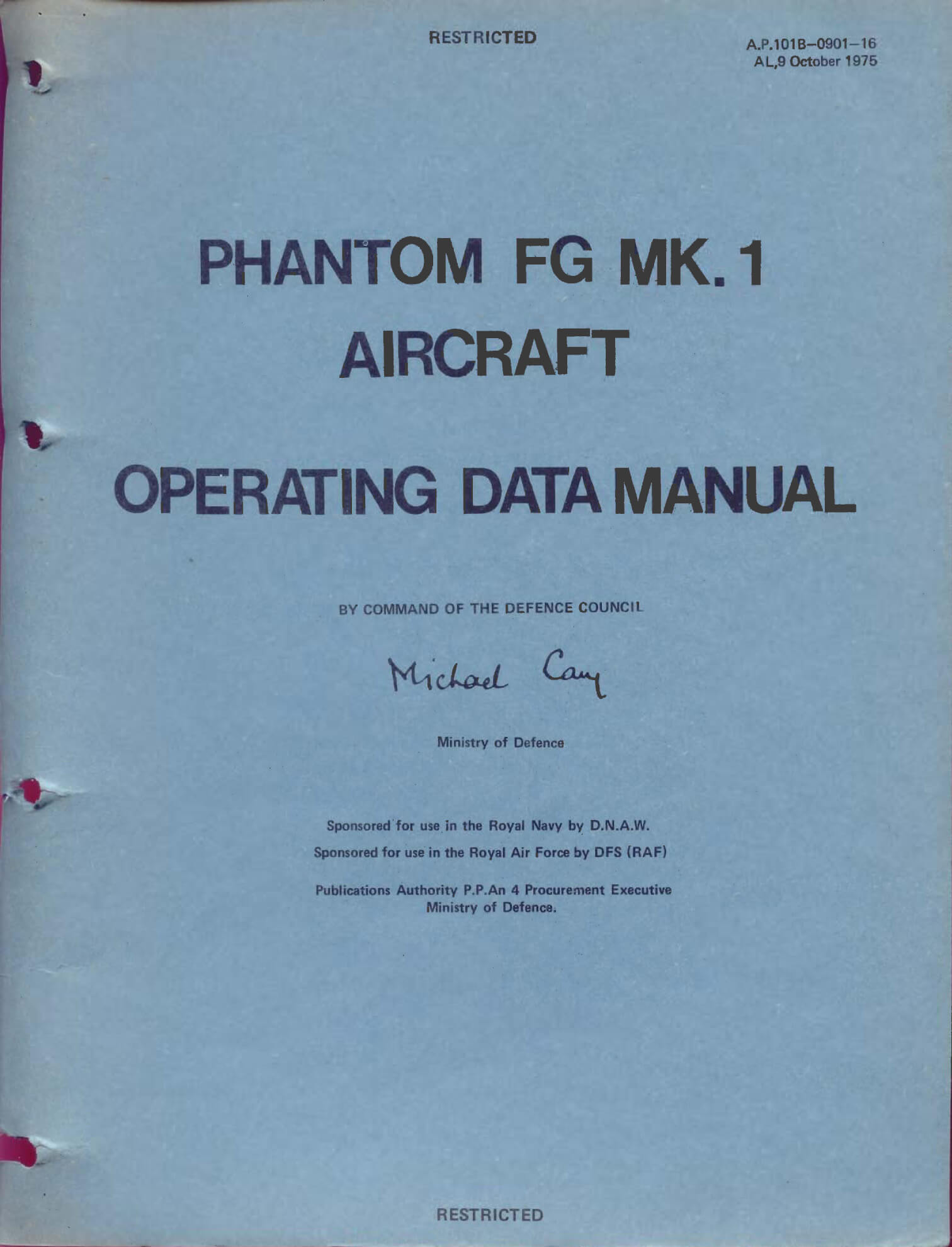

  • RAF Operating Data Manual for the Phantom FG.1, AP 101B-0901-16 revised to Oct 75, with approx 237 pages.

Title 4 contains:

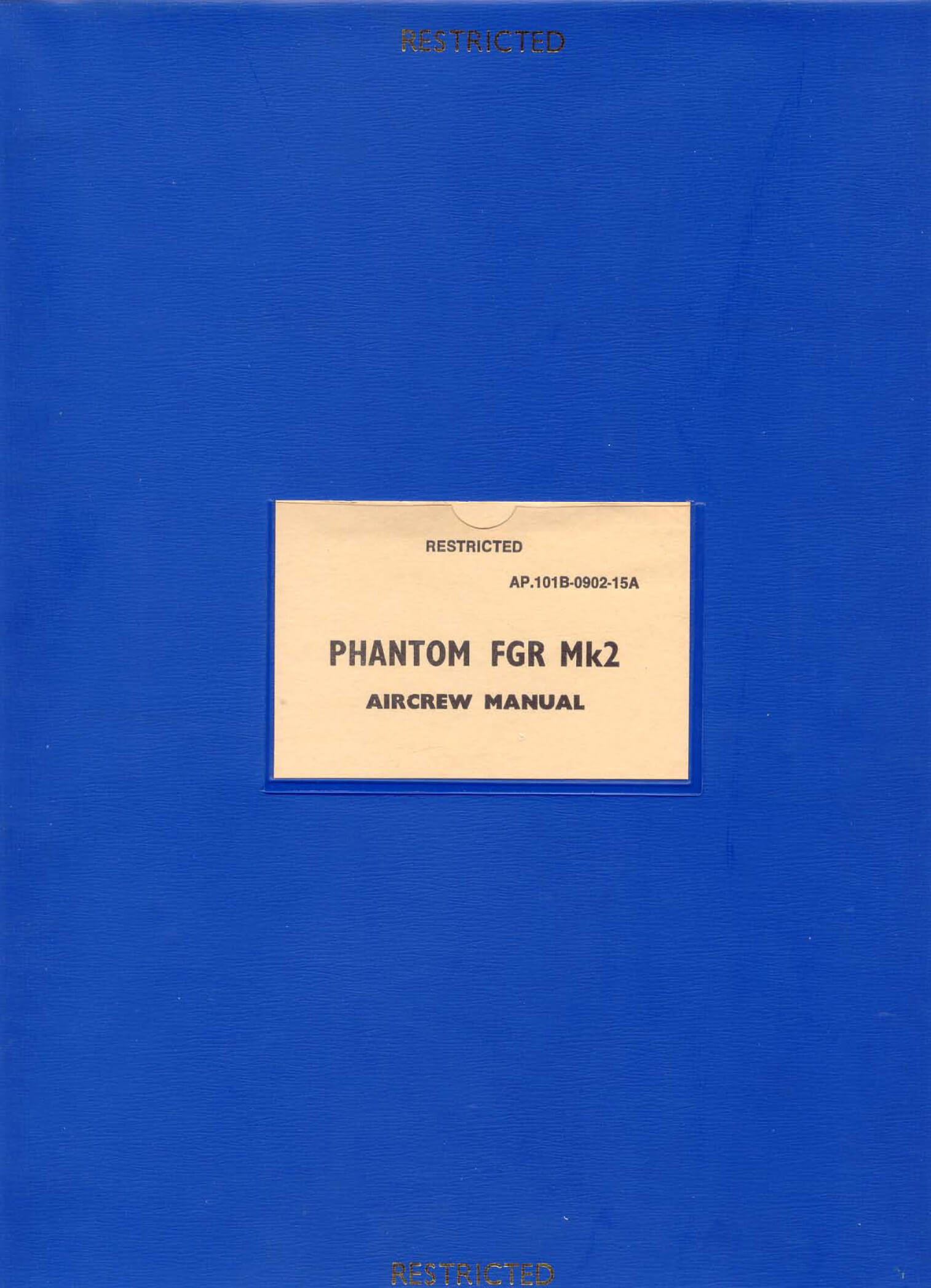

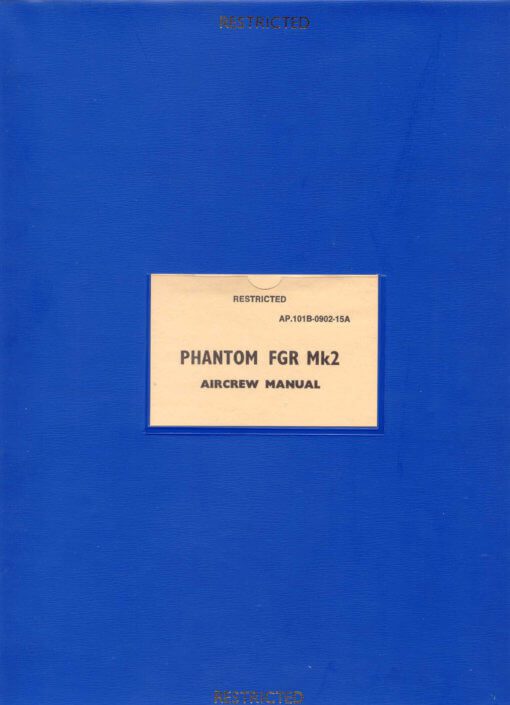

  • RAF Aircrew Manual for the Phantom FGR.2, AP 101B-0902-15A dated Oct 69 with approx 275 pages.

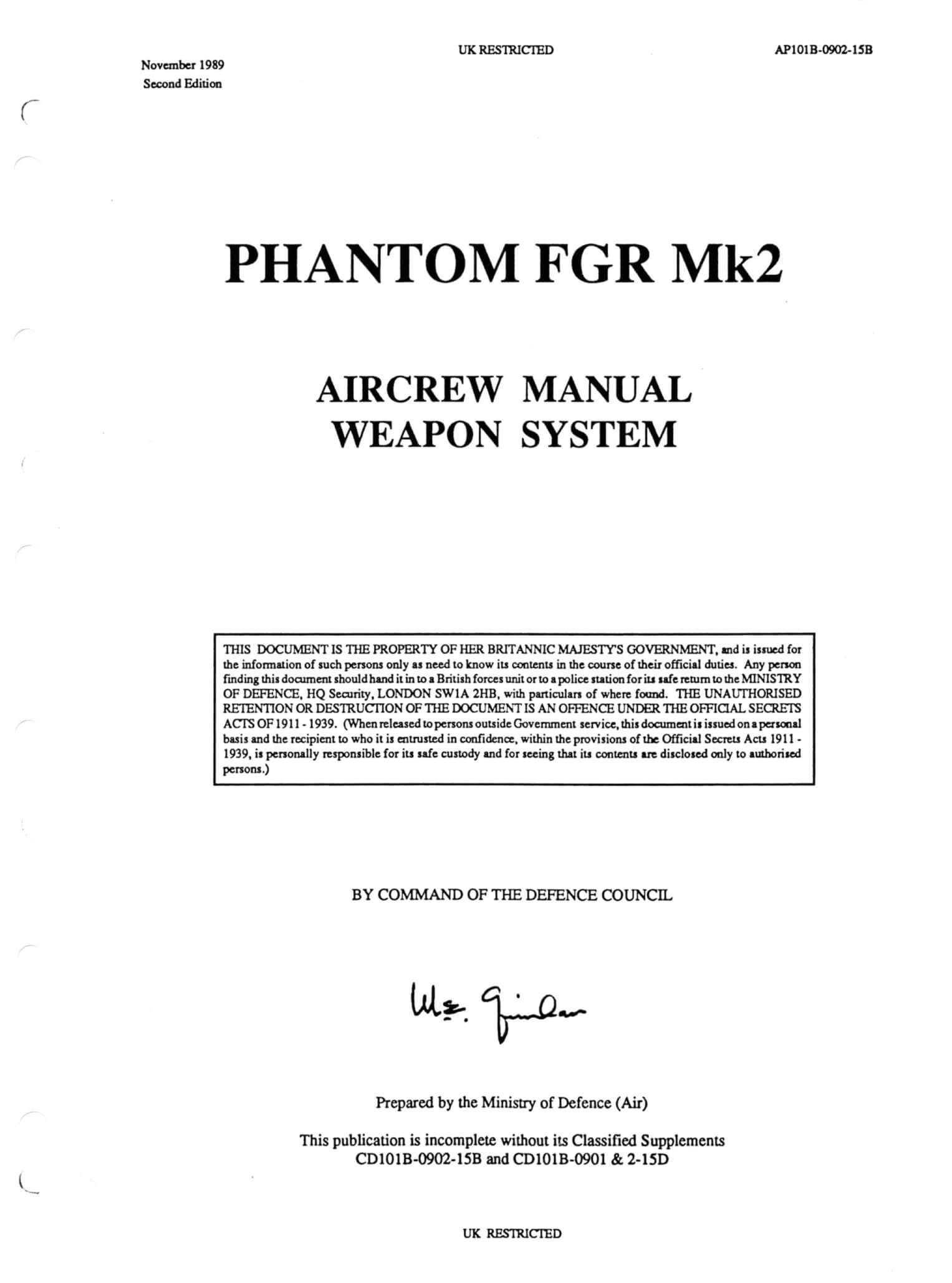

  • RAF Weapons System Manual for the Phantom FGR.2, AP 101B-0902-15B, 2nd Edition dated Nov 89 with approx 162 pages.

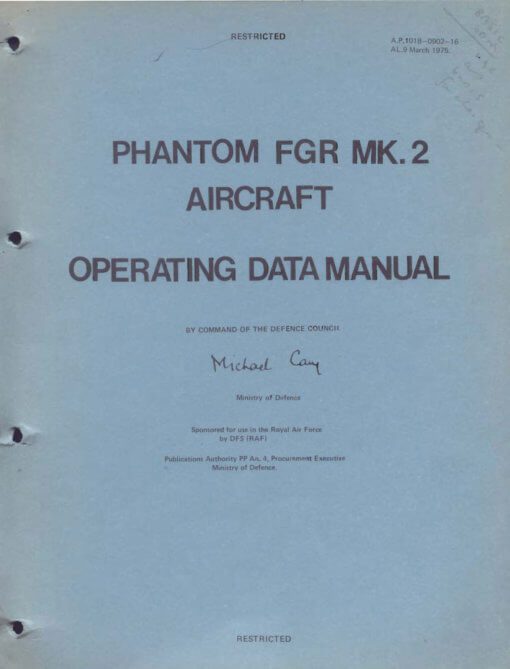

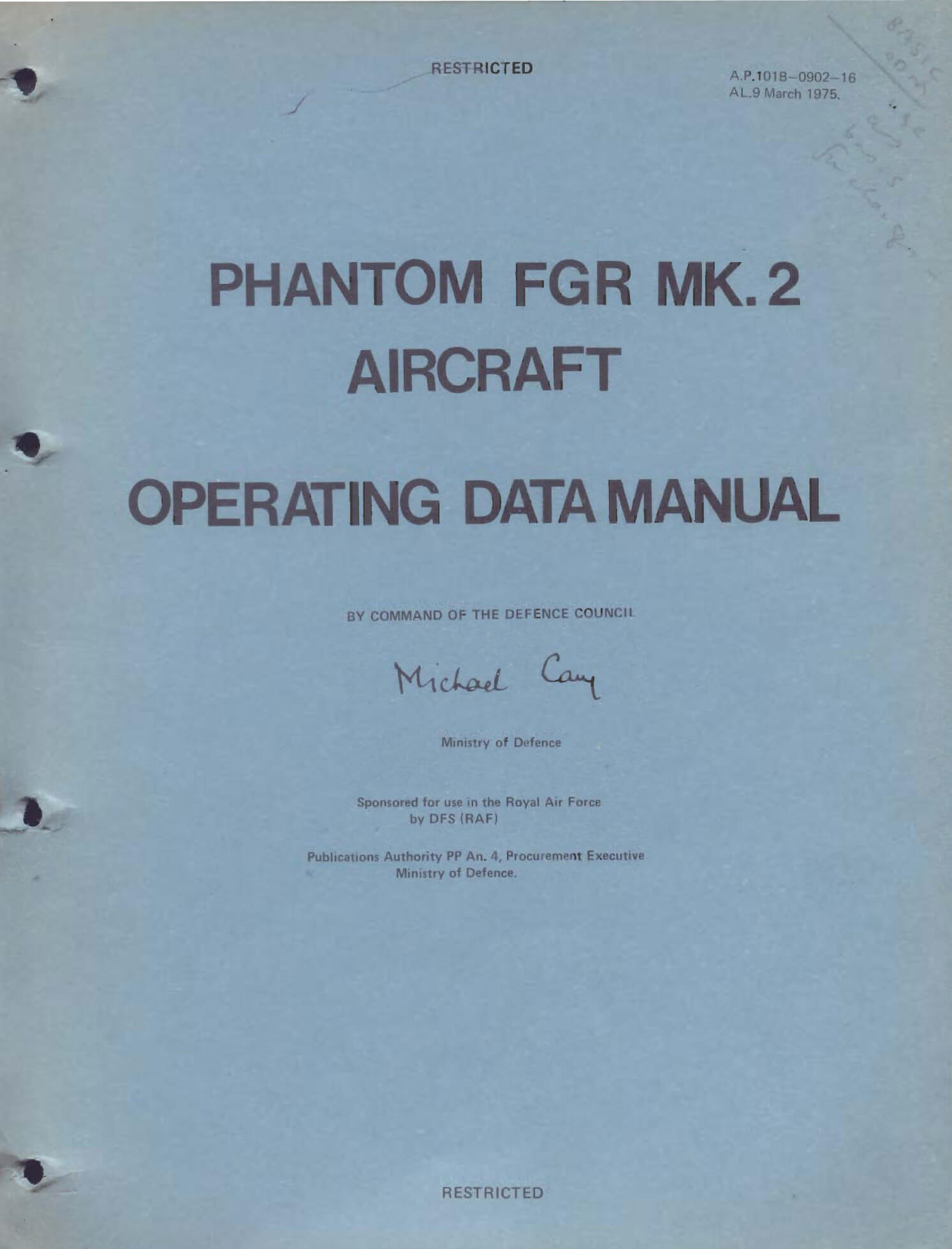

  • RAF Operating Data Manual for the Phantom FGR.2, AP 101B-0902-16 revised to Mar 75, with approx 299 pages.

Title 5 contains:

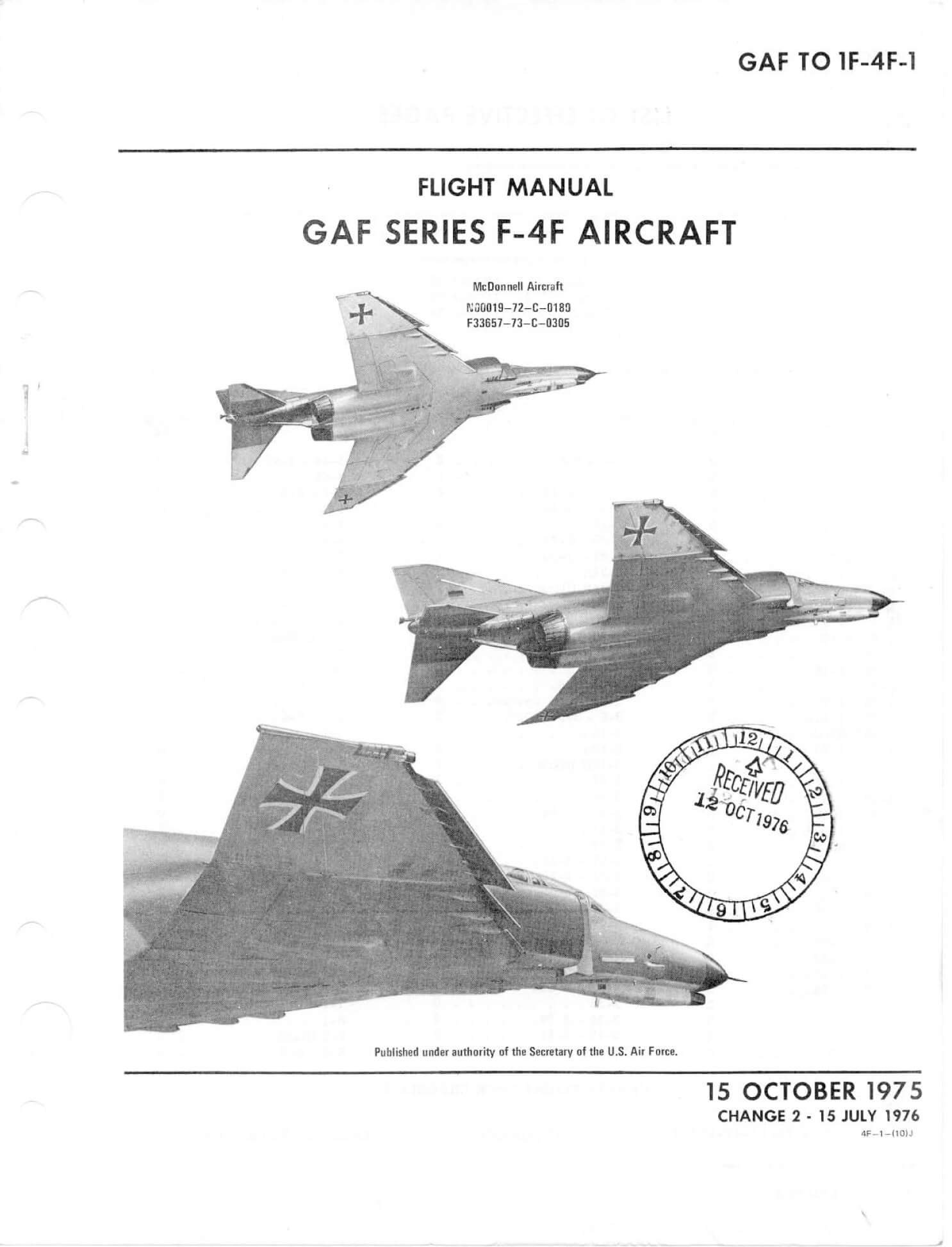

  • Luftwaffe Flight Manual for the F-4F, GAF TO 1F-4F-1 dated 15-10-75 revised to 15-7-76, with approx 484 pages.

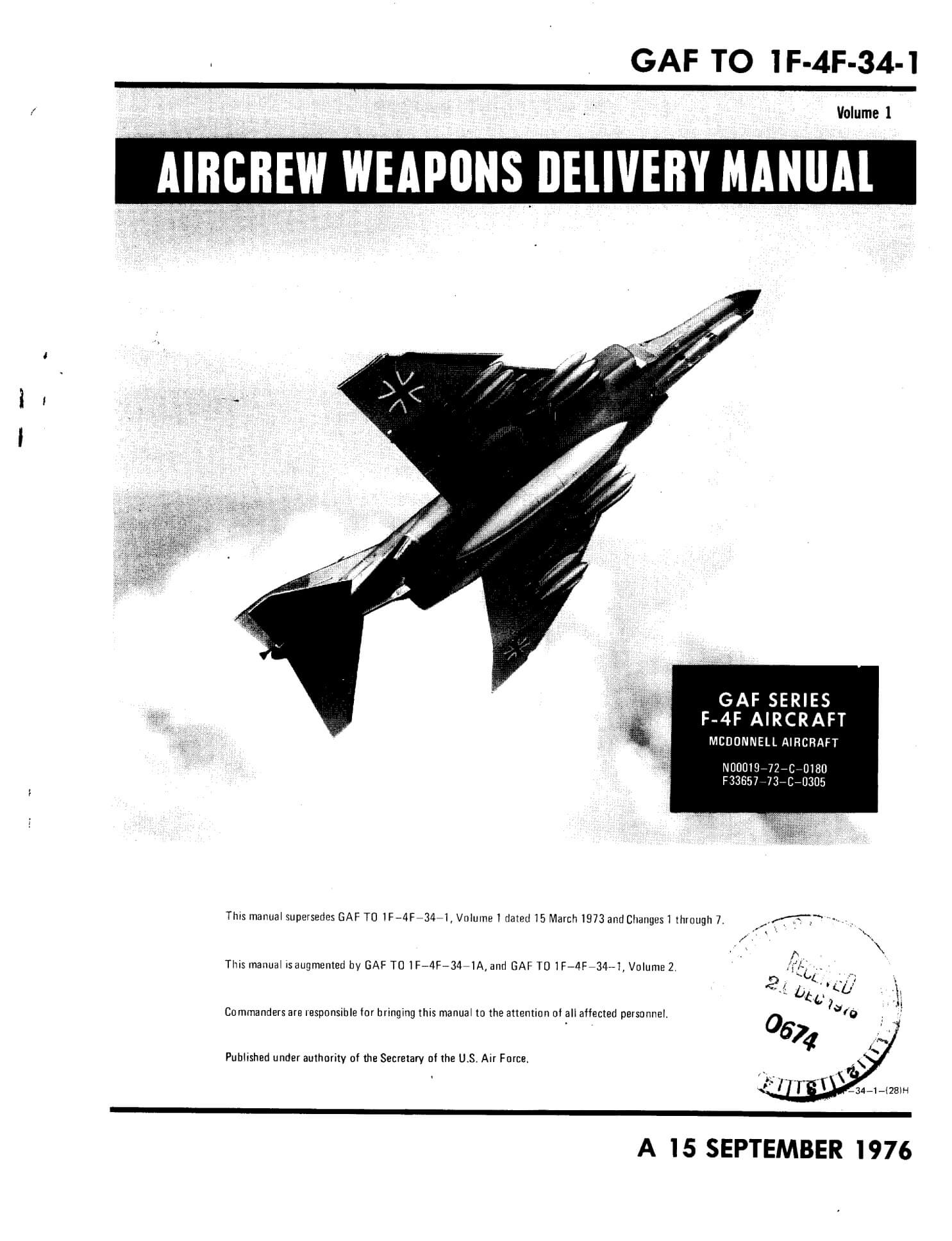

  • Luftwaffe Aircrew Weapon Delivery Manual for the F-4F, GAF TO 1F-4F-34-1 dated 15-9-76, with approx 323 pages.

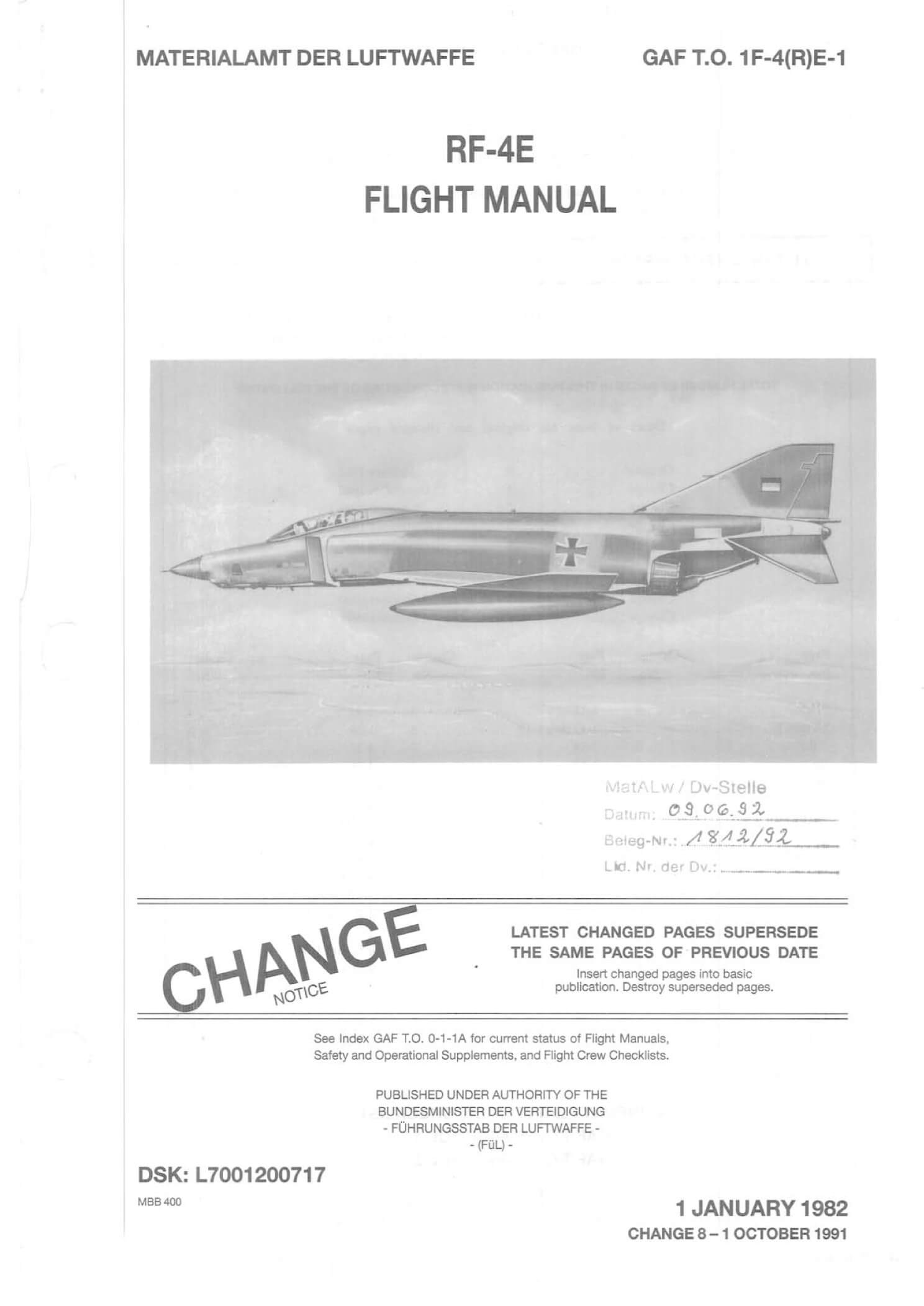

  • Luftwaffe Flight Manual for the RF-4E, GAF TO 1F-4(R)E-1 dated 1-1-82 revised to 1-10-91, with approx 551 pages.
