De HAVILLAND DH82 TIGER MOTH

$9.95

Titles: De Havilland DH82 Tiger Moth No’s 1 to 3

The DH82 Tiger Moth was a typical 1930’s De Havilland biplane, developed from the earlier DH60G Gipsy Moth. The main change was moving the top wing forward to enable evacuation of the forward cockpit, and sweepback was introduced to maintain the centre of gravity. It quickly found favour with both civil and military pilot training organisations and over 9,000 were eventually built from assembly lines in England, Australia, Canada, New Zealand and several other countries.

It became the standard primary training aircraft in most commonwealth countries and was sold to over 20 other air arms. 200 examples supplied to Canada under the lend-lease scheme were designated PT-24 by the USAAF. It was also used in many other roles including agricultural topdressing in New Zealand.

We offer three titles containing flight manuals for the DH-82 Tiger Moth series, one title covers manuals produced in England and Australia, the second covers manuals produced in Canada and the USA, and the third covers manuals used by the RNZAF and RAAF along with the Aircraft Profile. The files have been copied from the original flight manuals or reprints and retain any colour pages. Each title is US$9.95.





SKU: N/A Categories: ,

Description

Title 1 contains:

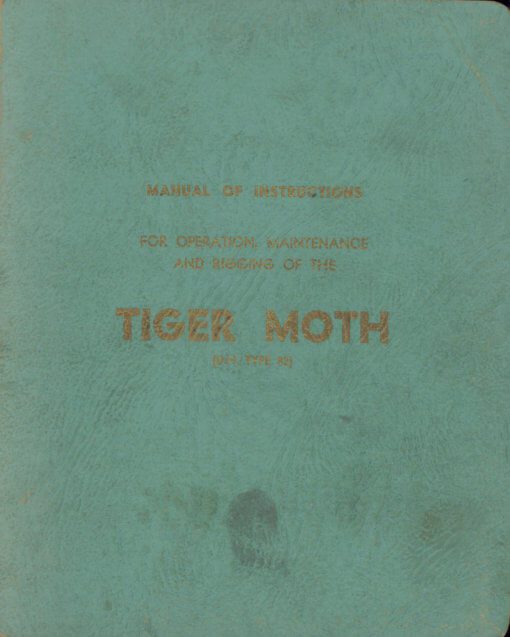

  • Manual of Instructions for the Operation, Maintenance and Rigging of the DH82 Tiger Moth, manual TIM.1 (1st Australian Edition), undated with approx. 44 pages.

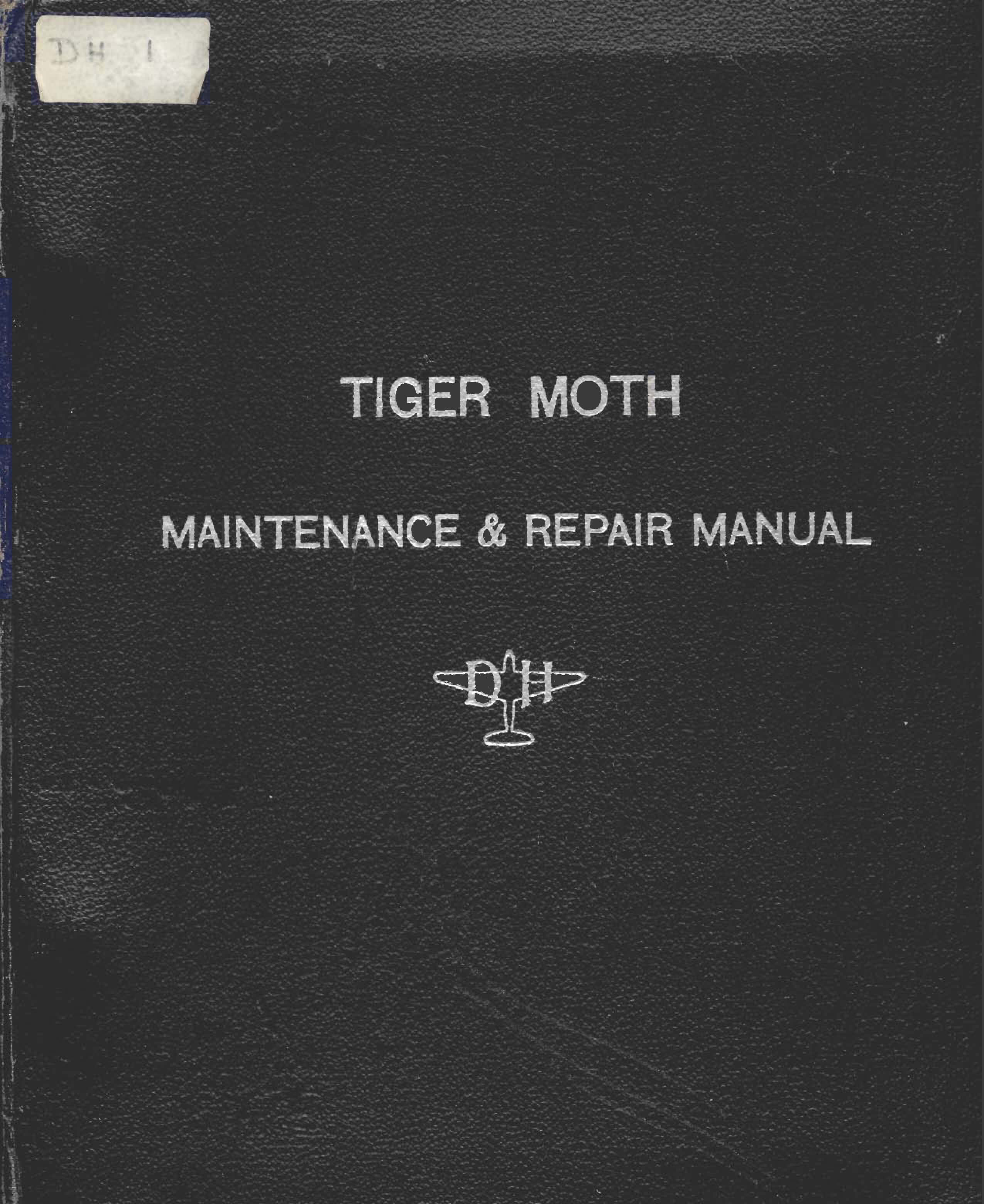

  • Maintenance & Repair Manual for the Tiger Moth, manual DHTM1 dated June 1947 with approx. 126 pages.

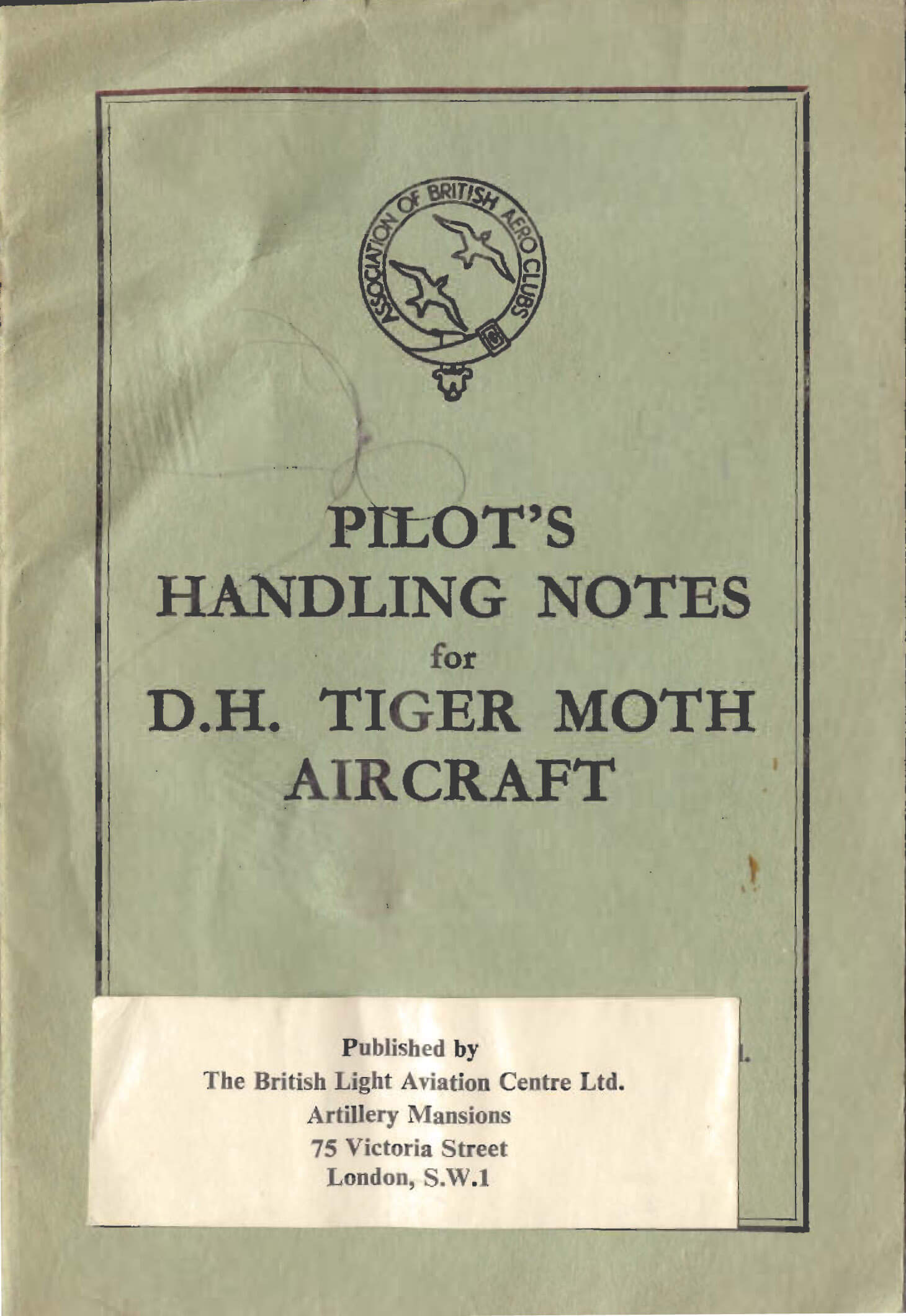

  • Pilot’s Handling Notes for the DH82 Tiger Moth, produced by the Society of British Aero Clubs, undated with approx. 16 pages.

Title 2 contains:

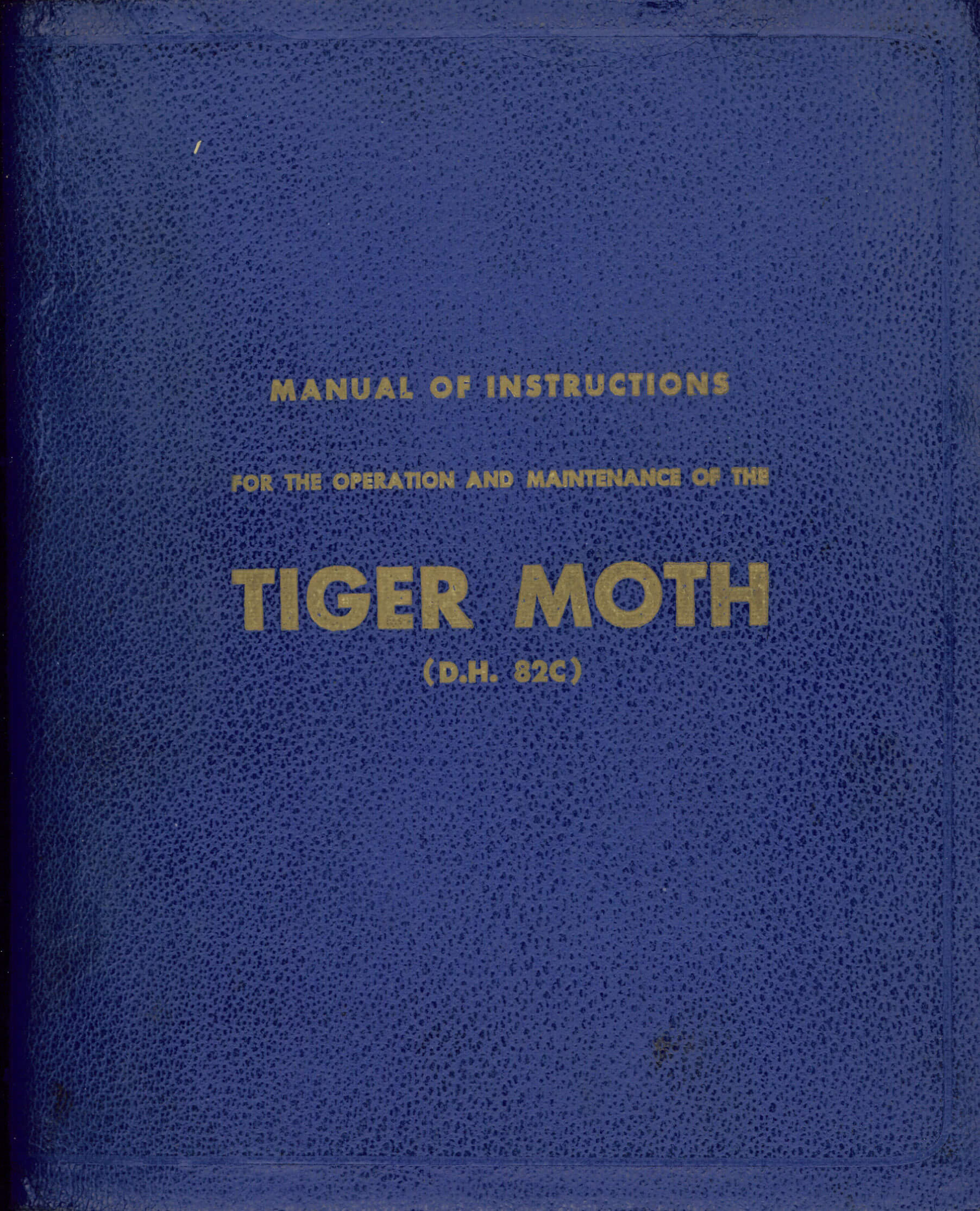

  • Manual of Instructions for the Operation and Maintenance of the DH82C Tiger Moth, manual TIM.C1 (Canadian Edition), undated with approx. 35 pages.
  • Schedule of Spare Parts for the De Havilland Tiger Moth, Canadian Air Publication No 264 dated June 1942 with approx. 232 pages.

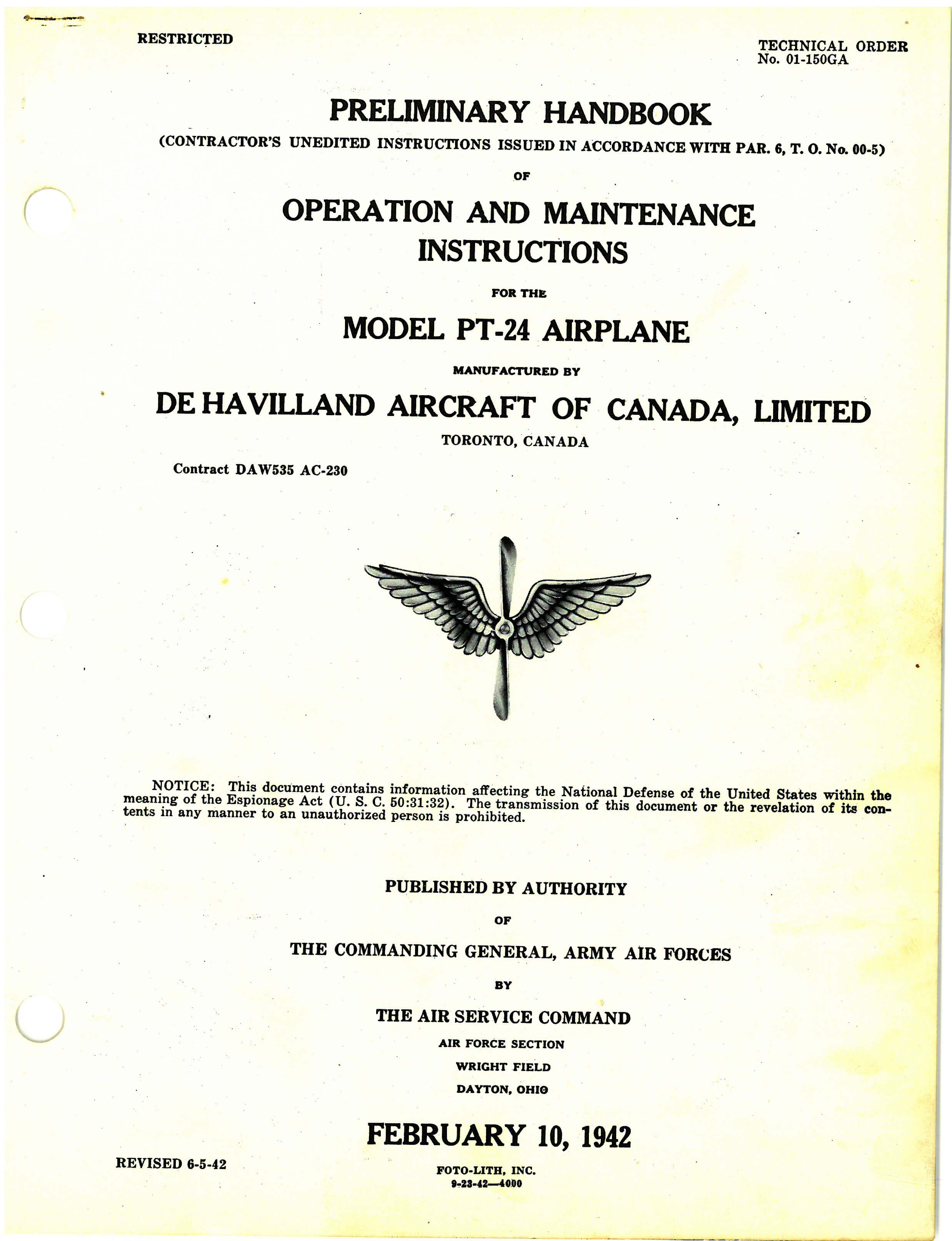

  • USAAF Preliminary Handbook of Operation and Maintenance Instructions (Contractor’s unedited instructions) for the PT-24, Technical Order No 01-150GA dated 10-2-42 revised to 5-6-42 with approx. 22 pages.

Title 3 contains:

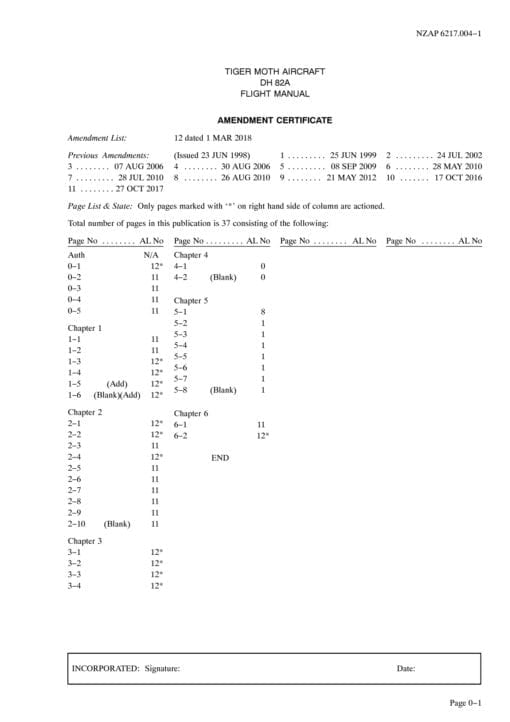

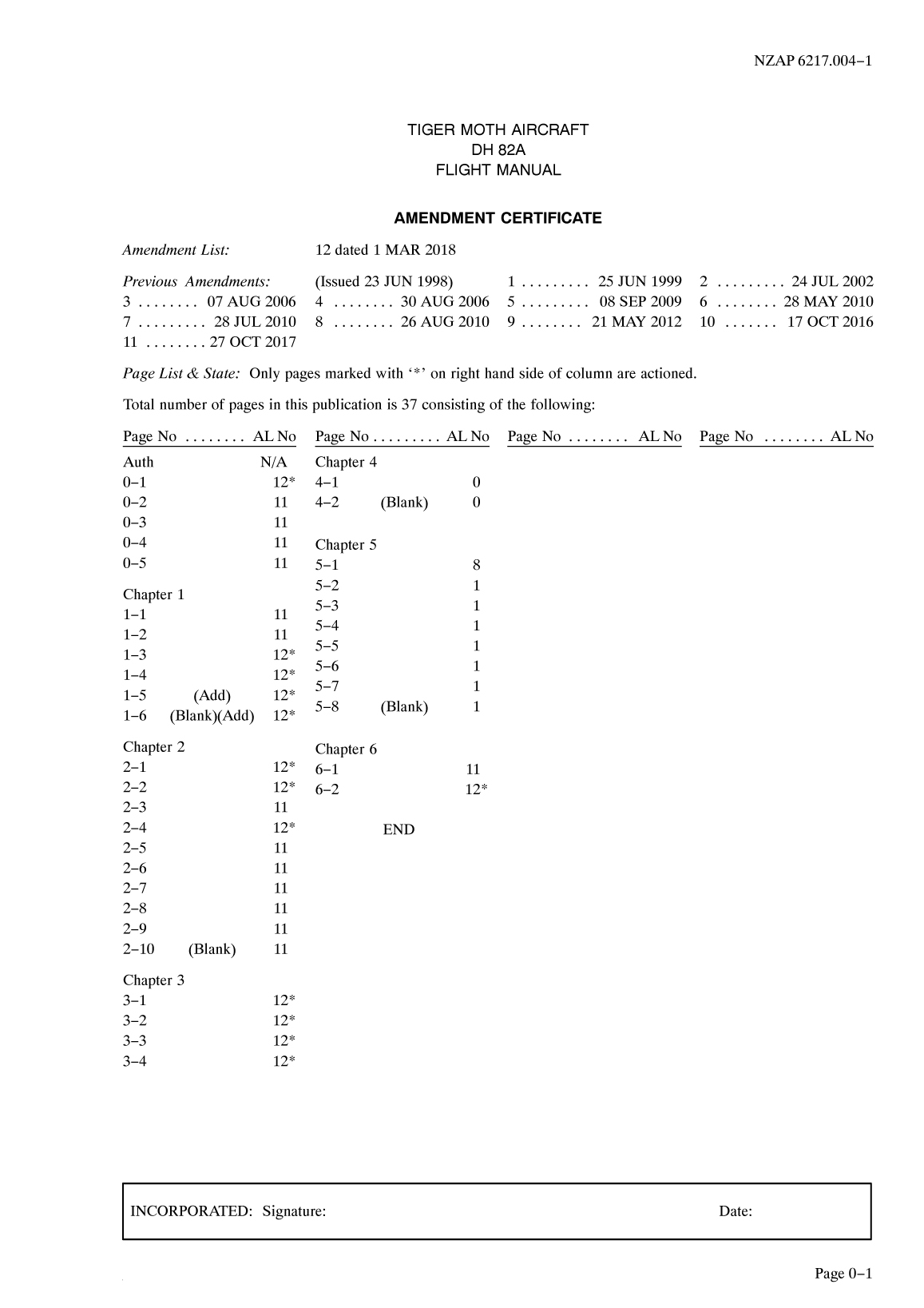

  • RNZAF Flight Manual for the DH82A Tiger Moth (Historic Flight), NZAP 6217.004-1 dated 23-6-98 at AL 12 dated 1-3-18, with approx. 22 pages.

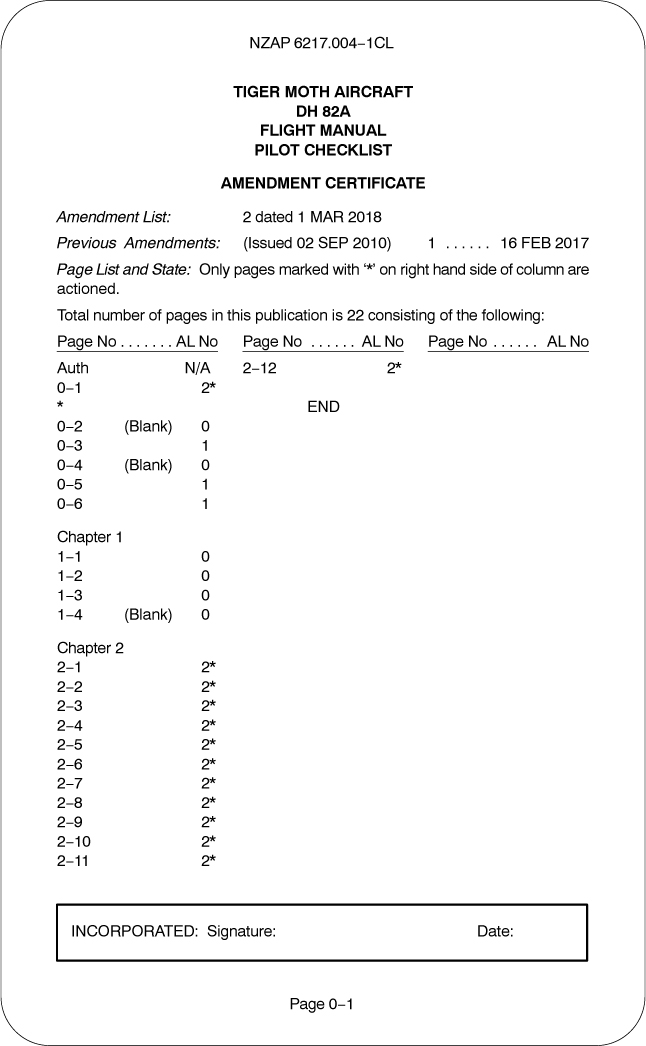

  • RNZAF Flight Manual – Pilots Checklist for the DH82A Tiger Moth (Historic Flight), NZAP 6217.004-1CL dated 2-9-10 at AL 2 dated 1-3-18, with approx. 37 pages.

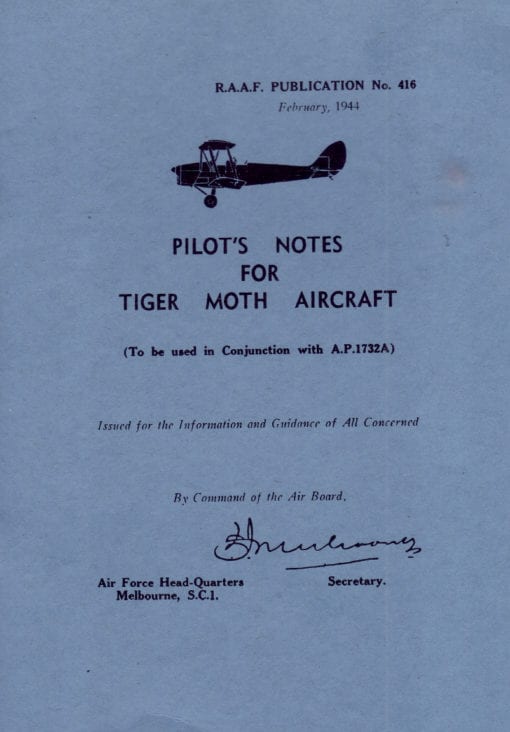

  • RAAF Pilot’s Notes for the Tiger Moth, RAAF Publication No 416 dated Feb 1944 with approx. 22 pages.
  • Aircraft Profile No 132 covering the De Havilland DH82 Tiger Moth, dated 1966 with 16 pages.
