DASSAULT MIRAGE F1

$9.95

Title: Dassault Mirage F1 No’s 1 to 9

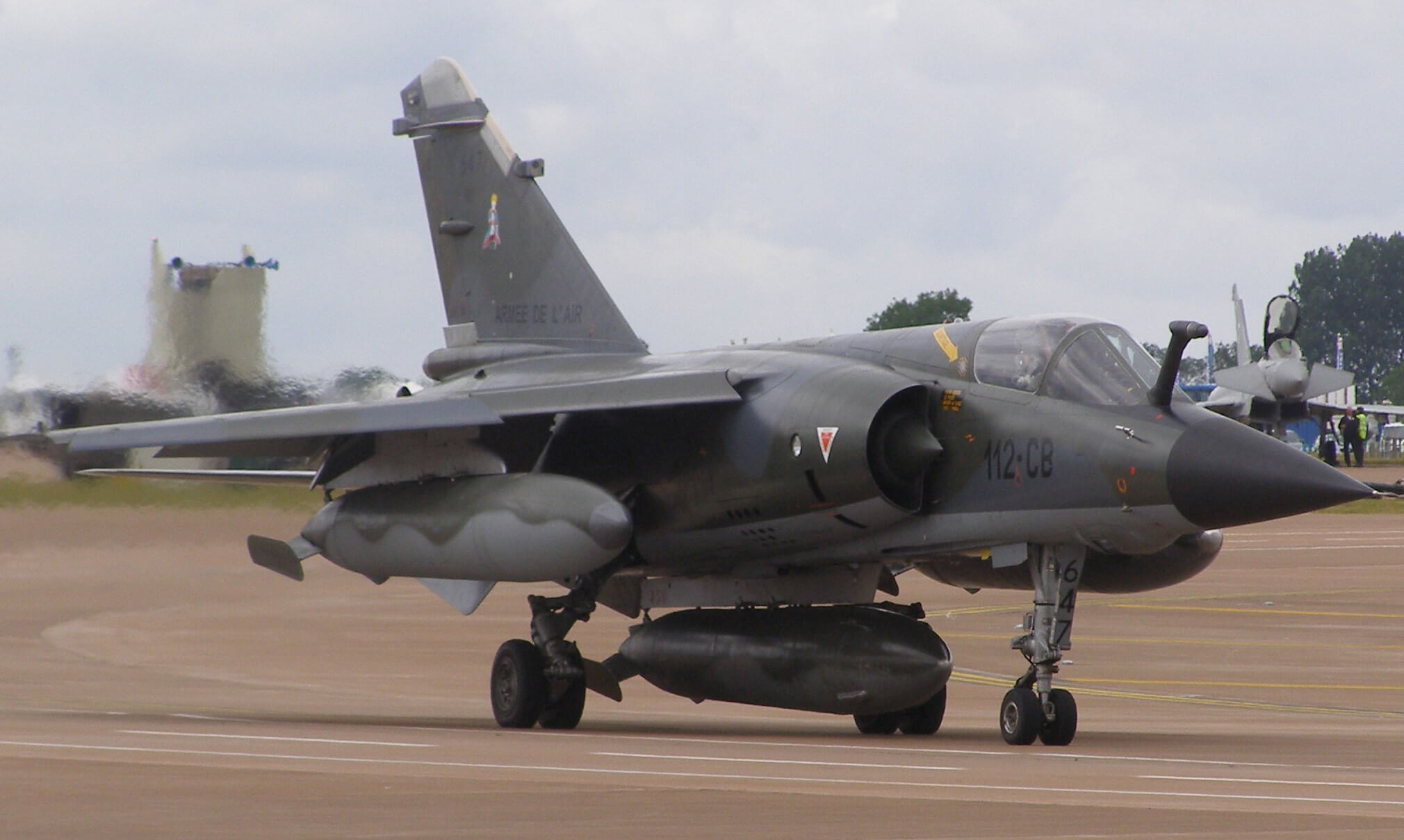

The Mirage F1 was the result of design studies completed by Dassault during the 1960’s. Initially funded as a private venture. The Armee de L’Air became interested as a successor to the Mirage III/5 series. First flown in 1967, the Mirage F.1 was the first non-delta-winged member of the Mirage family and entered service in 1974. The last examples were retired from the Armee de L’Air in 2014, after 40 years service.

Around 720 examples were manufactured over a 26 year production life, the Mirage F.1 was also very successful in the export market, seeing service with around a dozen other air arms, including Spain, Iraq, Greece, Equador, Jordan, Kuwait, Libya, etc. The aircraft has participated in a number of armed conflicts, including the Western Sahara war, the Paquisha War, the Cenepa War, the Iran-Iraq War, the Gulf War, the South African border War, the Afghanistan War, the Chad-Libya War, etc.

A number of variants of the Mirage F1 were developed, optimised for both air-to-air interception and ground attack. Later multi-role variants were produced able to undertake both roles.

We offer nine titles covering the Mirage F1, six titles covering flight manuals and a maintenance manual for export variants of the aircraft, all in English, and three titles containing French translations of most of these manuals. The files have been scanned from the original flight manuals and retain any colour pages. Each title is US$9.95.

SKU: N/A Category:

Description

Title 1 contains:

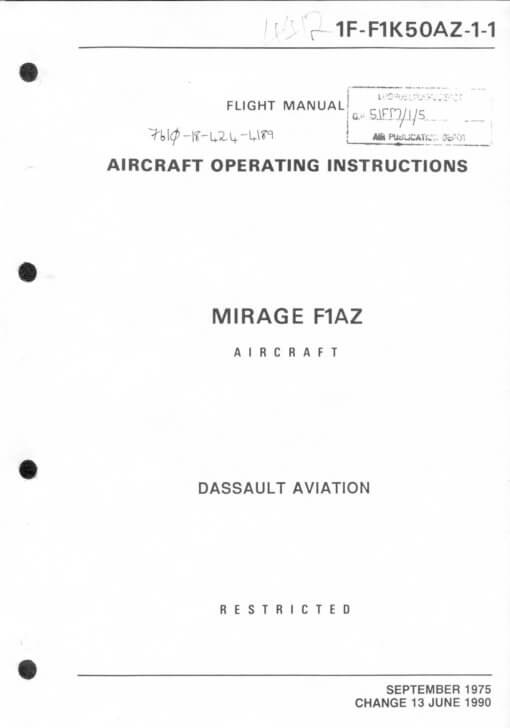

  • Mirage F1AZ Aircraft Operating Manual – Volume One – Flight Manual. (The F1AZ is the ground attack variant used by the SAAF). Contains Aircraft Description, Limitations, Normal and Emergency procedures and Flight Characteristics. 1F-F1K50AZ-1-1 originally produced by the manufacturer and dated Jan 1975, revised to June 1990 (with subsequent Atlas amendments), with approx 370 pages. In English.

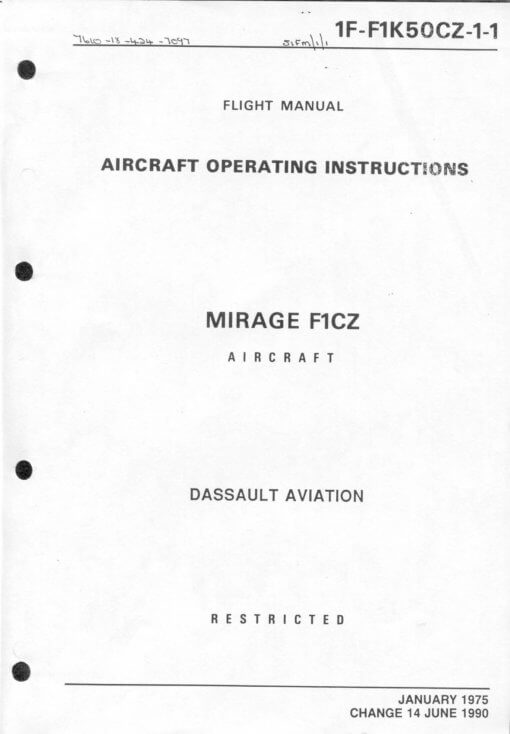

  • Mirage F1CZ Aircraft Operating Manual – Volume One – Flight Manual. (The F1CZ is the air-to-air interceptor variant used by the South African Air Force (SAAF)). Contains Aircraft Description, Limitations, Normal and Emergency procedures, and Flight Characteristics. 1F-F1K50CZ-1-1 originally produced by the manufacturer and dated Jan 1975, revised to June 1990 (with subsequent Atlas amendments), with approx 365 pages. In English.

Title 2 contains:

  • Mirage F1AD Aircraft Operating Manual – Flight Manual. (The F1AD is the ground attack variant used by the Libyan Air Force). Contains Aircraft Description, Limitations, Normal and Emergency procedures, and Flight Characteristics. 1F-F1K50AD-1-1 produced by the manufacturer and dated Jan 1978, revised to Change 9 June 1990, with approx 314 pages. In English.
  • Mirage F1AD – Flight Manual – Navigation and Weapon System (NWS) Operating Instructions. Contains NWS Description, Normal and Operational procedures and Limitations. 1F-F1K50AD-1-2 produced by the manufacturer and dated Jan 1978, revised to Change 6 dated June 1990, with approx. 224 pages. In English.
  • Mirage F1AD – In-Flight Guide – Normal and Emergency Procedures (pilot’s checklist). 1F-F1K50AD-1-1CL produced by the manufacturer and dated Jan 1978, revised to  June 1990, with approx. 130 pages. In English.

Title 3 contains:

  • Mirage F1AD Aircraft Operating Manual – Flight Manual. 1F-F1K50AD-1-1 dated Jan 1978, revised to Change 9 June 1990, with approx 307 pages. (The same manual as in Title 2, but in the French language. The cover remains in English.)
  • Mirage F1AD – Flight Manual – Navigation and Weapon System (NWS) Operating Instructions. 1F-F1K50AD-1-2 dated Jan 1978, revised to Change 6 dated June 1990, with approx. 217 pages. (The same manual as in Title 2, but in the French language. The cover remains in English.)
  • Mirage F1AD – In-Flight Guide – Normal and Emergency Procedures (pilot’s checklist). 1F-F1K50AD-1-1CL produced by the manufacturer and dated Jan 1978, revised to  June 1990, with approx. 130 pages. (The same as in Title 2, we do not have a French version.) In English.

Title 4 contains:

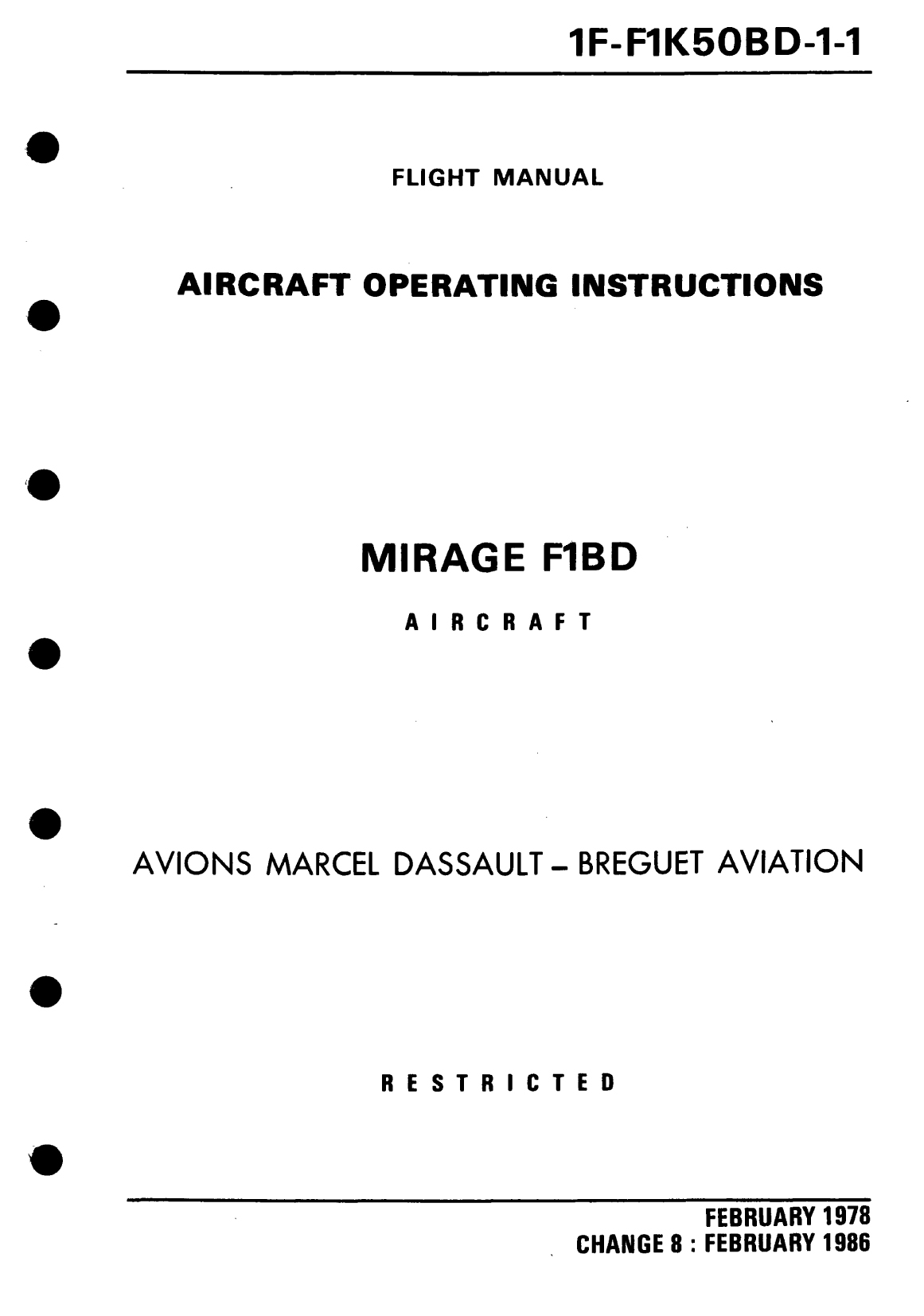

  • Mirage F1BD Aircraft Operating Manual – Flight Manual. (The F1BD is the two-seat variant of the F1AD used by the Libyan Air Force). Contains Aircraft Description, Limitations, Normal and Emergency procedures, and Flight Characteristics. 1F-F1K50BD-1-1 produced by the manufacturer and dated Feb 1978, revised to Change 8 dated Feb 1986, with approx 332 pages. In English.

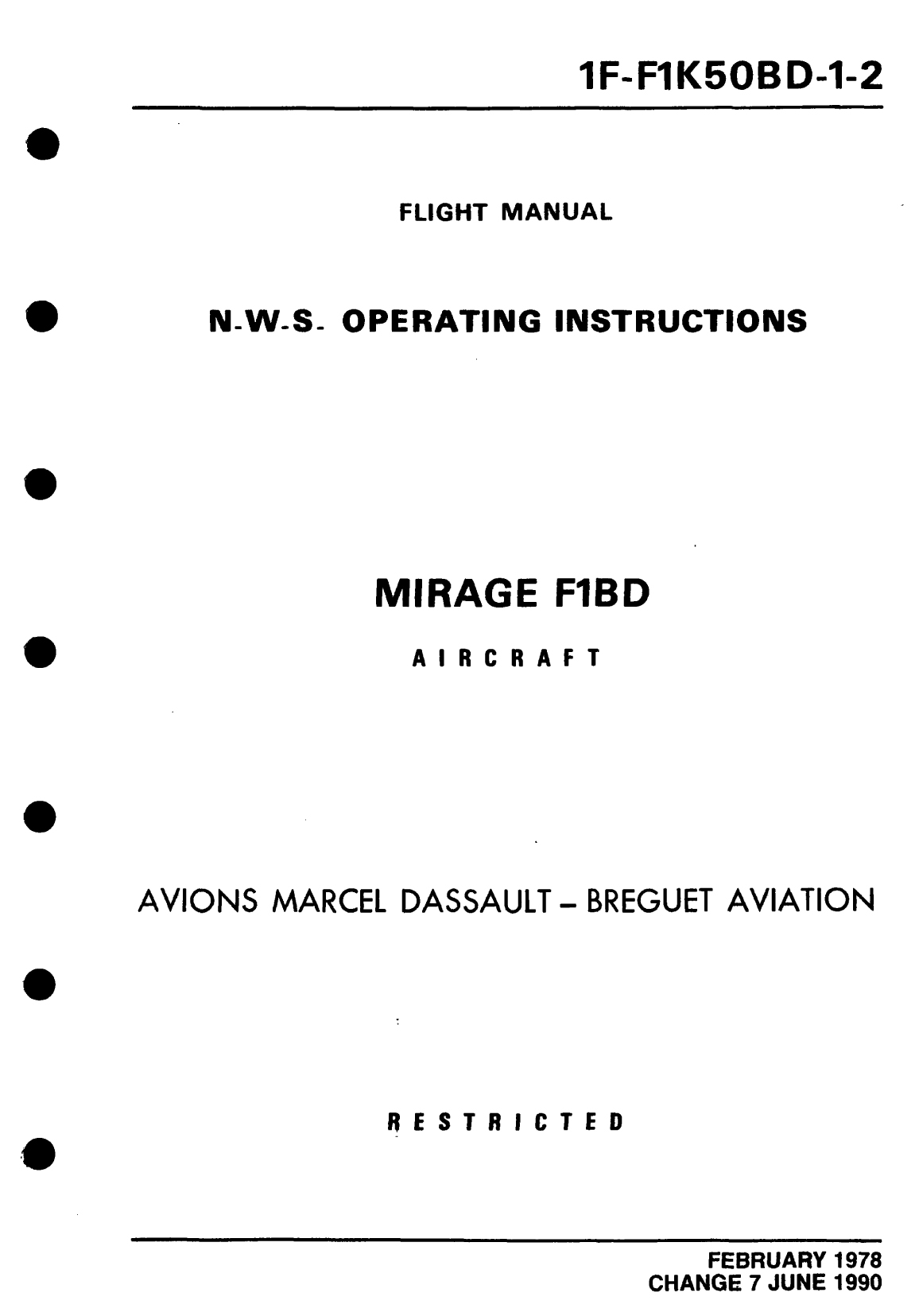

  • Mirage F1BD – Flight Manual – Navigation and Weapon System (NWS) Operating Instructions. Contains NWS Description, Normal and Operational procedures and Limitations. 1F-F1K50BD-1-2 produced by the manufacturer and dated Feb 1978, revised to Change 7 dated June 1990, with approx. 231 pages. In English.

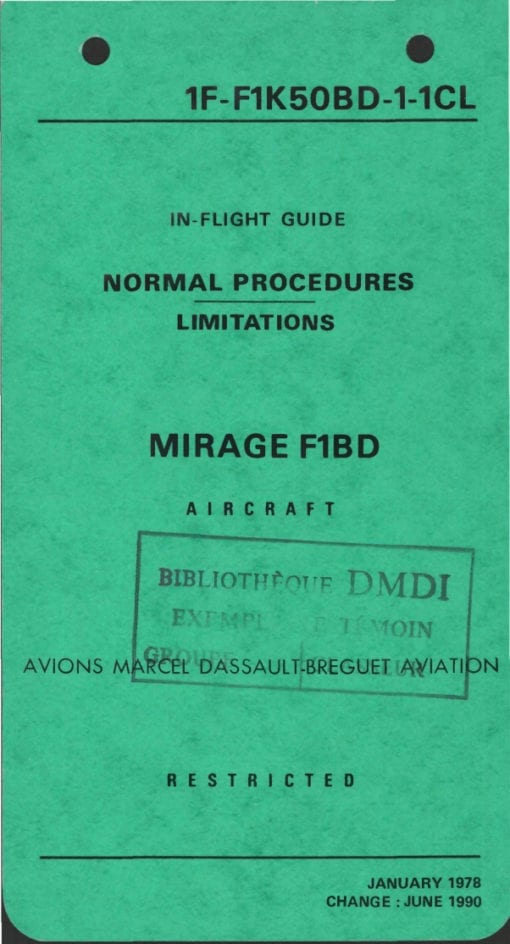

  • Mirage F1BD – In-Flight Guide – Normal and Emergency Procedures (pilot’s checklist). 1F-F1K50BD-1-1CL produced by the manufacturer and dated Jan 1978, revised to  June 1990, with approx. 129 pages. In English.

Title 5 contains:

  • Mirage F1BD Aircraft Operating Manual – Flight Manual. 1F-F1K50BD-1-1 dated Feb 1978, revised to Change 8 dated Feb 1986, with approx 350 pages. (The same manual as in Title 4, but in the French language. The cover remains in English.)
  • Mirage F1BD – Flight Manual – Navigation and Weapon System (NWS) Operating Instructions. 1F-F1K50BD-1-2 dated Feb 1978, revised to Change 7 dated June 1990, with approx. 226 pages. (The same manual as in Title 4, but in the French language. The cover remains in English.)
  • Mirage F1BD – In-Flight Guide – Normal and Emergency Procedures (pilot’s checklist). 1F-F1K50BD-1-1CL produced by the manufacturer and dated Jan 1978, revised to  June 1990, with approx. 129 pages. (The same as in Title 4, we do not have a French version.) In English.

Title 6 contains:

  • Mirage F1ED Aircraft Operating Manual – Flight Manual. (The F1ED is a multi-role fighter and ground attack variant used by the Libyan Air Force). Contains Aircraft Description, Limitations, Normal and Emergency procedures, and Flight Characteristics. 1F-F1K50ED-1-1 produced by the manufacturer and dated Jan 1978, revised to Change 9 dated June 1990, with approx 306 pages. In English.

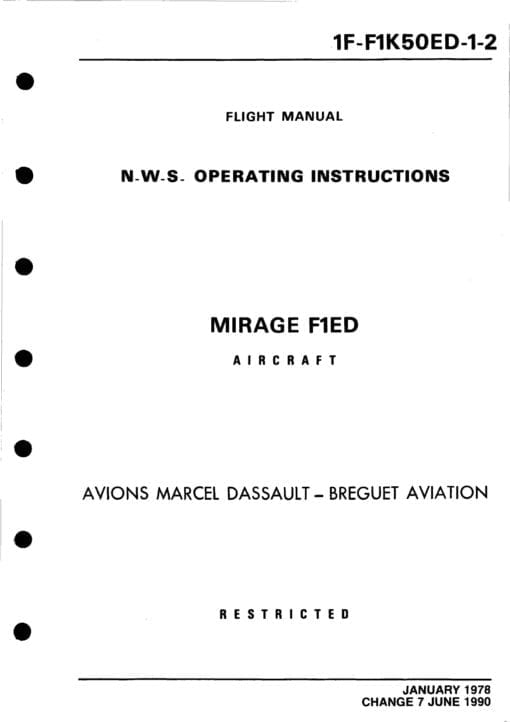

  • Mirage F1ED – Flight Manual – Navigation and Weapon System (NWS) Operating Instructions. Contains NWS Description, Normal and Operational procedures and Limitations. 1F-F1K50ED-1-2 produced by the manufacturer and dated Jan 1978, revised to Change 7 dated June 1990, with approx. 239 pages. In English.
  • Mirage F1ED – In-Flight Guide – Normal and Emergency Procedures (pilot’s checklist). 1F-F1K50ED-1-1CL produced by the manufacturer and dated Dec 1977, revised to  June 1990, with approx. 129 pages. In English.

Title 7 contains:

  • Mirage F1ED Aircraft Operating Manual – Flight Manual. 1F-F1K50ED-1-1 dated Jan 1978, revised to Change 9 dated June 1990, with approx. 299 pages. (The same manual as in Title 6, but in the French language. The cover remains in English.)
  • Mirage F1ED – Flight Manual – Navigation and Weapon System (NWS) Operating Instructions. 1F-F1K50ED-1-2 dated Jan 1978, revised to Change 7 dated June 1990, with approx. 234 pages. (The same manual as in Title 6, but in the French language. The cover remains in English.)
  • Mirage F1ED – In-Flight Guide – Normal and Emergency Procedures (pilot’s checklist). 1F-F1K50ED-1-1CL produced by the manufacturer and dated Jan 1978, revised to  June 1990, with approx. 129 pages. (The same as in Title 6, we do not have a French version.) In English.

Title 8 contains:

Mirage F1AD Maintenance Manual. Two volumes:

  • Volume 1 Contains Manual 01 through Manual 09, 1F-F1K50AD-2-1 through 1F-F1K50AD-2-9, produced by the manufacturer and dated May 1990, with approx 3,641 pages. In English. Manual 01 – General, Manual 02 – Servicing Instructions, Manual 03 – Structure and Airframe, Manual 04 – Flight Controls, Manual 05 – Take-off and Landing System, Manual 06 – Powerplant, Manual 07 – Hydraulic System, Manual 08 – Electrical System, Manual 09 – Conditioning Installation.
  • Volume 2 contains Manual 10 through Manual 17, 1F-F1K50AD-2-10 through 1F-F1K50AD-2-17, produced by the manufacturer and dated May 1990, with approx. 1881 pages. In English. Manual 10 – NWS General, Manual 11 – NWS Radio and Communication System, Manual 12 – NWS Control and Navigation, Manual 13 – NWS Flight Control Electronics and AP, Manual 14 – NWS Operational Systems, Manual 15 – NWS Armament, Manual 16 – Wiring, Manual 17 – Data Recording.

Title 9 contains:

Mirage F1AD Maintenance Manual (French). Two volumes:

  • Volume 1 Contains Manual 01 through Manual 09, 1F-F1K50AD-2-1 through 1F-F1K50AD-2-9 produced by the manufacturer dated May 1990, with approx 3,355 pages.(The same manual as in Title 8, but in the French language. The covers remain in English.) Manual 01 – Generalites, Manual 02 – Instructions de Piste, Manual 03 – Structure et Cellule, Manual 04 – Commandes de Vol, Manual 05 – Dispositif d’Atterrisage et de Decollage, Manual 06 – Installation Propulsive, Manual 07 – Installation Hydraulique, Manual 08 – Installation Electrique, Manual 09 – Installations d’Habitabilite.
  • Volume 2 contains Manual 10 through Manual 17, 1F-F1K50AD-2-10 through 1F-F1K50AD-2-17 produced by the manufacturer dated May 1990, with approx. 1881 pages. (The same manual as in Title 8, but in the French language. The covers remain in English.) Manual 10 – SNA Generalites, Manual 11 – SNA Installations Radio Telephonique, Manual 12 – SNA Conduite et Navigation, Manual 13 – SNA Electronique Cdes de Vol et A.P., Manual 14 – SNA Installations Operationelles, Manual 15 – SNA Armement, Manual 16 – Cablages, Manual 17 – Enregistrement des Parametres.
